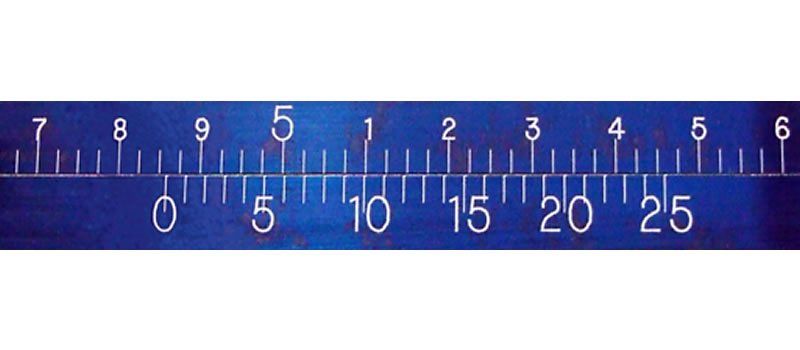

Pi-Tape® Outside Diameter Tapes - Blue Easy to Read
The Blue Easy to Read tapes are best used for measuring diameters in low-light environments. They are not intended for use with chemicals or in corrosive environments.
These outside diameter measuring tapes are available in metric or inch markings, made of 1095 Spring steel, and available in sizes from 0.001" to 144" (0.01 mm - 3600 mm).
Each unit is delivered with a Calibration Report traceable to the National Institute of Standards and Technology (NIST).
| PN | Size | Gage Width |
Thickness | Offset/Body Width |
|
|
| P01EZ | .75" - 7" | 0.25" | .007" | 0.5" | X | |
| P02EZ | .75" - 9" | 0.25" | .007" | 0.5" | X | |
| P1EZ | 2" - 12" | 0.25" | .010" | 0.5" | X | |
| P1SPEZ | 2" - 24" | 0.25" | .010" | 0.5" | X | |
| P2EZ | 12" - 24" | 0.25" | .010" | 0.5" | X | |
| P2SPEZ | 12" - 36" | 0.25" | .010" | 0.5" | X | |
| P3EZ | 24" - 36" | 0.25" | .010" | 0.5" | X | |
| P3SPEZ | 24" - 48" | 0.25" | .010" | 0.5" | X | |
| P4EZ | 36" - 48" | 0.25" | .010" | 0.5" | X | |
| P5EZ | 48" - 60" | 0.25" | .010" | 0.5" | X | |
| P6EZ | 60" - 72" | 0.25" | .010" | 0.5" | X | |
| P7EZ | 72" - 84" | 0.25" | .010" | 0.5" | X | |
| P8EZ | 84" - 96" | 0.25" | .010" | 0.5" | X | |
| P9EZ | 96" - 108" | 0.25" | .010" | 0.5" | X | |
| P10EZ | 108" - 120" | 0.25" | .010" | 0.5" | X | |
| P11EZ | 120" - 132" | 0.25" | .010" | 0.5" | X | |
| P12EZ | 132" - 144" | 0.25" | .010" | 0.5" | X | |
| PM0EZ | 28mm - 200mm | 6.35mm | 0.18mm | 12.7mm | X | |
| PM02EZ | 28mm - 300mm | 6.35mm | 0.18mm | 12.7mm | X | |
| PM03EZ | 50mm - 300mm | 6.35mm | 0.25mm | 12.7mm | X | |
| PM1EZ | 100mm - 300mm | 6.35mm | 0.25mm | 12.7mm | X | |
| PM1SPEZ | 50mm - 600mm | 6.35mm | 0.25mm | 12.7mm | X | |
| PM2EZ | 300mm - 600mm | 6.35mm | 0.25mm | 12.7mm | X | |
| PM2SPEZ | 300mm - 900mm | 6.35mm | 0.25mm | 12.7mm | X | |
| PM3EZ | 600mm - 900mm | 6.35mm | 0.25mm | 12.7mm | X | |
| PM3SPEZ | 600mm - 1200mm | 6.35mm | 0.25mm | 12.7mm | X | |
| PM4EZ | 900mm - 1200mm | 6.35mm | 0.25mm | 12.7mm | X | |
| PM5EZ | 1200mm - 1500mm | 6.35mm | 0.25mm | 12.7mm | X | |
| PM6EZ | 1500mm - 1800mm | 6.35mm | 0.25mm | 12.7mm | X | |
| PM7EZ | 1800mm - 2100mm | 6.35mm | 0.25mm | 12.7mm | X | |
| PM8EZ | 2100mm - 2400mm | 6.35mm | 0.25mm | 12.7mm | X | |
| PM9EZ | 2400mm - 2700mm | 6.35mm | 0.25mm | 12.7mm | X | |
| PM10EZ | 2700mm - 3000mm | 6.35mm | 0.25mm | 12.7mm | X | |
| PM11EZ | 3000mm - 3300mm | 6.35mm | 0.25mm | 12.7mm | X | |
| PM12EZ | 3300mm - 3600mm | 6.35mm | 0.25mm | 12.7mm | X |
