Bearings


Straight Faced Unground Non-Precision Bearings


Model: 3065

Bore Size: 1-1/16

Bore Type: Hex

Load Rating: 603

Max Body OD: 2.321

Tube Size: 3 1/2

Tube Thickness: 11 GA

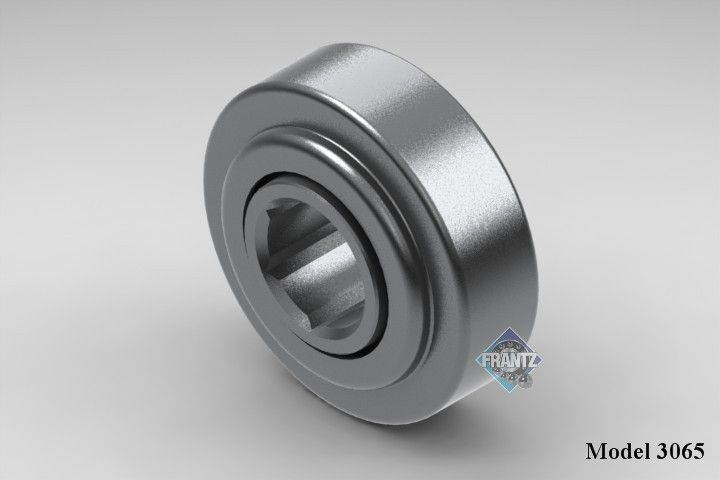

Photo of Frantz 3065 Straight Faced Unground Non-Precision Bearing
Drawing of Frantz 3065 Straight Faced Unground Non-Precision Bearing

Model: 4113

Bore Size: 11/16

Bore Type: Hex

Load Rating: 600

Max Body OD: 2.321

Tube Size: 2 1/2

Tube Thickness: 16 GA

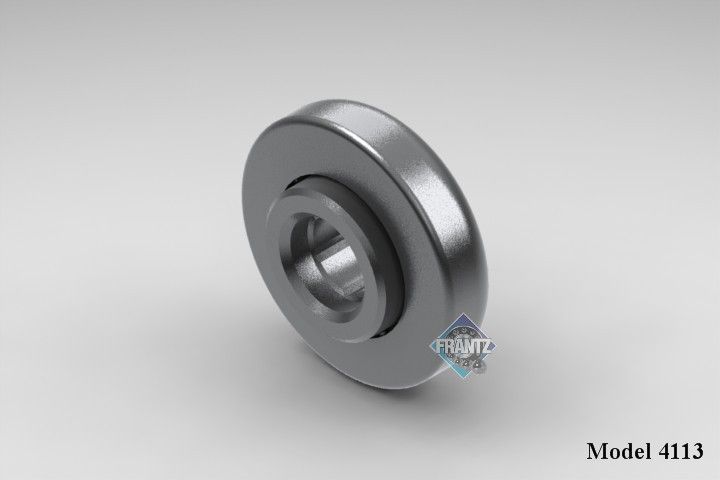

Photo of Frantz 4113 Straight Faced Unground Non-Precision Bearing
Drawing of Frantz 4113 Straight Faced Unground Non-Precision Bearing

Model: 4114 (High Temp)

Bore Size: 11/16

Bore Type: Hex

Load Rating: 600

Max Body OD: 2.321

Tube Size: 2 1/2

Tube Thickness: 11 GA

Photo of Frantz 4114 Straight Faced Unground Non-Precision Bearing

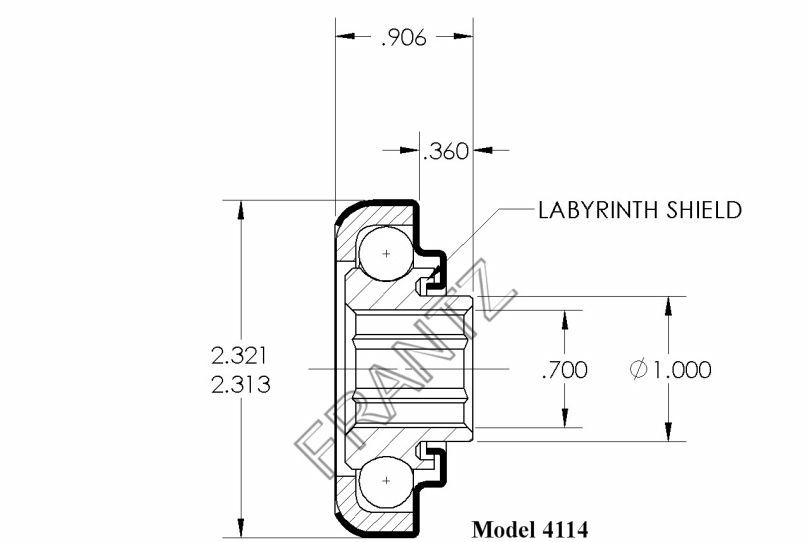

Drawing of Frantz 4114 Straight Faced Unground Non-Precision Bearing
