Blt_HD_MOR

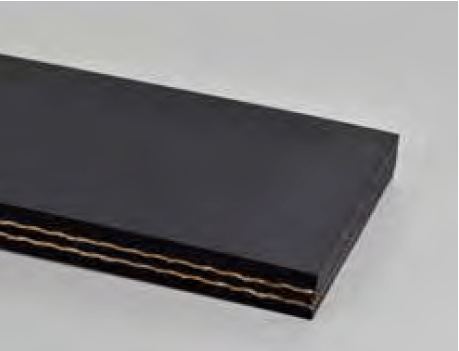

Heavy Duty Moderate Oil Resistant Conveyor Belting

Jealco presents a selection of top-notch oil-resistant conveyor belting, tailored to meet the needs of diverse industries. Specifically designed to thrive in environments where oil and grease are prevalent, such as in the food and grain processing sectors, this type of belt offers good resistance to these elements. As a result, you can expect maximum longevity and durability, ultimately leading to a reduction in maintenance expenses and downtime.

Belt#
HDMOR1

2 PLY 160 PIW 1/8 X BARE MOR

Specifications:
Belt Description: 2 PLY 160 PIW 1/8 X BARE MOR
# Plys: 2
Color: Black
Compound: MOR
Top Cover: 1/8"
Bottom Cover: Bare
Thickness: 0.21875 (7/32")
Covers: C x Bare
Working Tension (PIW): 160
Temperature Range: -25º/225ºF
Minimum Pulley Diameter: 6
Approximate Weight PIW: 0.126

Flexco Rivet: R5; Flexco Bolt: #375

Alligator Staple: #187

Belt#
HDMOR2

2 PLY 220 PIW 1/8 X BARE MOR

Specifications:
Belt Description: 2 PLY 220 PIW 1/8 X BARE MOR
# Plys: 2
Color: Black
Compound: MOR
Top Cover: 1/8"
Bottom Cover: Bare
Thickness: 0.2344 (15/64")
Covers: C x Bare
Working Tension (PIW): 220
Temperature Range: -25º/225ºF
Minimum Pulley Diameter: 10
Approximate Weight PIW: 0.142

Flexco Plate: #190/Rivet: R5 1/2

Flexco Bolt: #550

Belt#
HDMOR3

2 PLY 220 PIW 3/16 X BARE MOR

Specifications:
Belt Description: 2 PLY 220 PIW 3/16 X BARE MOR
# Plys: 2
Color: Black
Compound: MOR
Top Cover: 3/16"
Bottom Cover: Bare
Thickness: 0.28125 (9/32")
Covers: C x Bare
Working Tension (PIW): 220
Temperature Range: -25º/225ºF
Minimum Pulley Diameter: 10
Approximate Weight PIW: 0.17

Flexco Plate: #140/Rivet: R5

Flexco Bolt: #375 or 550

Belt#
HDMOR4

3 PLY 225 PIW 1/8 X BARE MOR

Specifications:
Belt Description: 3 PLY 225 PIW 1/8 X BARE MOR
# Plys: 3
Color: Black
Compound: MOR
Top Cover: 1/8"
Bottom Cover: Bare
Thickness: 0.250 (1/4")
Covers: C x Bare
Working Tension (PIW): 225
Temperature Range: -25º/225ºF
Minimum Pulley Diameter: 10
Approximate Weight PIW: 0.156

Flexco Plate: #140/Rivet: R5

Flexco Bolt: #375 or 550

Belt#
HDMOR5

3 PLY 330 1/16 X BARE MOR

Specifications:
Belt Description: 3 PLY 330 1/16 X BARE MOR
# Plys: 3
Color: Black
Compound: MOR
Top Cover: 1/16"
Bottom Cover: Bare
Thickness: 0.21875 (7/32")
Covers: C x Bare
Working Tension (PIW): 330
Temperature Range: -25º/225ºF
Minimum Pulley Diameter: 12
Approximate Weight PIW: 0.125

Flexco Plate: R2/Rivet: R5

Flexco Plate: #140/Rivet: R5

Belt #
 HDMOR6

3-Ply 330 3/32 x Bare MOR

Specifications:
Belt Description: 3-Ply 330 3/32 x Bare MOR
# Plys: 3
Color: Black
Compound: SBR / MOR
Top Cover: 3/32"
Bottom Cover: Bare
Thickness: 0.25 (1/4")
Covers: C x B
Working Tension (PIW): 330
Temperature Range: -25º/225ºF
Minimum Head Pulley Diameter: 12
Minimum Tail Pulley Diameter: 12
Approximate Weight PIW: 0.15
Flexco Plate: #140/Rivet: R5

Flexco Bolt: #550

Belt #
 HDMOR7

3-Ply 330 3/16 x Bare MOR

Specifications:
Belt Description: 3-Ply 330 3/16 x Bare MOR
# Plys: 3
Color: Black
Compound: SBR / MOR
Top Cover: 1/16"
Bottom Cover: Bare
Thickness: 0.375 (3/8")
Covers: C x B
Working Tension (PIW): 330
Temperature Range: -25º/225ºF
Minimum Head Pulley Diameter: 18
Minimum Tail Pulley Diameter: 12
Approximate Weight PIW: 0.181
Flexco Plate: #190/Rivet: R5

Flexco Bolt: #550

Belt#
HDMOR8

3 PLY 600 PIW 3/16 X BARE MOR

Specifications:
Belt Description: 3 PLY 600 PIW 3/16 X BARE MOR
# Plys: 3
Color: Black
Compound: MOR
Top Cover: 3/16"
Bottom Cover: Bare
Thickness: 0.500 (1/2")
Covers: C x Bare
Working Tension (PIW): 600
Temperature Range: -25º/225ºF
Minimum Pulley Diameter: 18
Approximate Weight PIW: 0.22

Flexco Plate: BR-10/Rivet: R5

Flexco Bolt: #550

Flexco Plate: BR-10/Rivet: R5-1/2

Belt#
HDMOR9

3 PLY 600 1/4IN X BARE MOR

Specifications:
Belt Description: 3 PLY 600 1/4IN X BARE MOR
# Plys: 3
Color: Black
Compound: MOR
Top Cover: 1/4"
Bottom Cover: Bare
Thickness: 0.500(1/2")
Covers: C x Bare
Working Tension (PIW): 600
Temperature Range: -25º/225ºF
Minimum Pulley Diameter: 16
Approximate Weight PIW: 0.245

Flexco Plate: BR-10/Rivet: R5-1/2

Flexco Plate: BR-10/Rivet: R6

Belt#
HDMOR10

3 PLY 750 1/4 X BARE MOR

Specifications:
Belt Description: 3 PLY 750 1/4 X BARE MOR
# Plys: 3
Color: Black
Compound: MOR
Top Cover: 1/4"
Bottom Cover: Bare
Thickness: 0.53125 (17/32")
Covers: C x Bare
Working Tension (PIW): 750
Temperature Range: -25º/225ºF
Minimum Pulley Diameter: 18
Approximate Weight PIW: 0.2888

Flexco Bolt: #R6

Flexco Plate: #140/Rivet: R5

Belt#
HDMOR11

3 PLY 705 PIW 1/4 MOR X 2 MM BROWN BACK

Specifications:
Belt Description: 3 PLY 705 PIW 1/4 MOR X 2 MM BROWN BACK
# Plys: 3
Color: Black/Brown
Compound: MOR
Top Cover: 1/4"
Bottom Cover: 2mm
Thickness: 0.5781 (37/64")
Covers: C x Bare
Working Tension (PIW): 705
Temperature Range: -25º/225ºF
Minimum Pulley Diameter: 18
Approximate Weight PIW: 0.307

Flexco Plate: BR-10/Rivet: R6

Flexco Bolt: #R6

Belt#
HDFRSCOR1

2-Ply 220 1/8 x 1/16 FR/SC/MOR

Specifications:
Belt Description: 2-Ply 220 1/8 x 1/16 FR/SC/MOR
# Plys: 2
Color: Black
Compound: SBR / Nitrile
Top Cover: 1/8"
Bottom Cover: 1/16"
Thickness: 0.29685 (19/64")
Covers: C x C
Working Tension (PIW): 220
Temperature Range: -25º/225ºF
Minimum Pulley Diameter: 16
Approximate Weight PIW: 0.166

Flexco Plate: #140/Rivet: R5

Flexco Bolt: #375 or 550

Belt#
HDFRSCOR5

2-Ply 220 5/32 x 3/32 FR-SBR

Specifications:
Belt Description: 2-Ply 220 5/32 x 3/32 FR-SBR
# Plys: 2
Color: Black
Compound: SBR
Top Cover: 5/32'
Bottom Cover: 3/32"
Thickness: 0.375 (3/8")
Covers: C x C
Working Tension (PIW): 220
Temperature Range: -25º/225ºF
Minimum Pulley Diameter: 16
Approximate Weight PIW: 0.213
Flexco Plate: #190/Rivet: R5

Flexco Bolt: #375 or 550

Belt#
HDSCMOR1

2-Ply 220 1/8 x 1/16 SC/MOR

Specifications:
Belt Description: 2-Ply 220 1/8 x 1/16 SC/MOR
# Plys: 2
Color: Black
Compound: SBR / Nitrile
Top Cover: 1/8"
Bottom Cover: 1/16"
Thickness: 0.29685 (19/64")
Covers: C x C
Working Tension (PIW): 220
Temperature Range: -25º/225ºF
Minimum Pulley Diameter: 16
Approximate Weight PIW: 0.166

Flexco Plate: #140/Rivet: R5

Flexco Bolt: #375 or 550

Belt#
HDSCMOR2

2-Ply 220 3/16 x 1/16 SC/MOR

Specifications:
Belt Description: 2-Ply 220 3/16 x 1/16 SC/MOR
# Plys: 2
Color: Black
Compound: SBR / Nitrile
Top Cover: 3/16"
Bottom Cover: 1/16"
Thickness: 0.34375 (11/32")
Covers: C x C
Working Tension (PIW): 220
Temperature Range: -25º/225ºF
Minimum Pulley Diameter: 16
Approximate Weight PIW: 0.181
Flexco Plate: #140/Rivet: R5

Flexco Bolt: #375 or 550

Belt #
 HDSCMOR3

3-Ply 330 3/16 x 1/16 MOR/SC

Specifications:
Belt Description: 3-Ply 330 3/16 x 1/16 MOR/SC
# Plys: 3
Color: Black
Compound: SBR / Nitrile
Top Cover: 3/16"
Bottom Cover: 1/16"
Thickness: 0.40625 (13/32")
Covers: C x C
Working Tension (PIW): 330
Temperature Range: -25º/225ºF
Minimum Head Pulley Diameter: 12
Minimum Tail Pulley Diameter: 12
Approximate Weight PIW: 0.213
Flexco Plate: #190/Rivet: R5 1/2

Flexco Bolt: #550

Belt#
HDFRSCOR3

3 PLY 330 PIW 1/16 X 1/16 FR/SC/VOR

Specifications:
Belt Description: 3 PLY 330 PIW 1/16 X 1/16 FR/SC/VOR
# Plys: 3
Color: Black
Compound: VOR
Top Cover: 1/16"
Bottom Cover: 1/16"
Thickness: 0.2657 (17/64")
Covers: C x C
Working Tension (PIW): 330
Temperature Range: -25º/225ºF
Minimum Pulley Diameter: 10
Approximate Weight PIW: 0.145

Flexco Plate: #140/Rivet: R5

Flexco Bolt: #550

Belt#
HDFRSCOR4

3 PLY 600 PIW 1/16 X 1/16 FR/SC/VOR

Specifications:
Belt Description: 3 PLY 600 PIW 1/16 X 1/16 FR/SC/VOR
# Plys: 3
Color: Black
Compound: VOR
Top Cover: 1/16"
Bottom Cover: 1/16"
Thickness: 0.375 (3/8")
Covers: C x C
Working Tension (PIW): 600
Temperature Range: -25º/225ºF
Minimum Pulley Diameter: 18
Approximate Weight PIW: 0.19

Flexco Plate: #140/Rivet: R5

Flexco Bolt: #550
