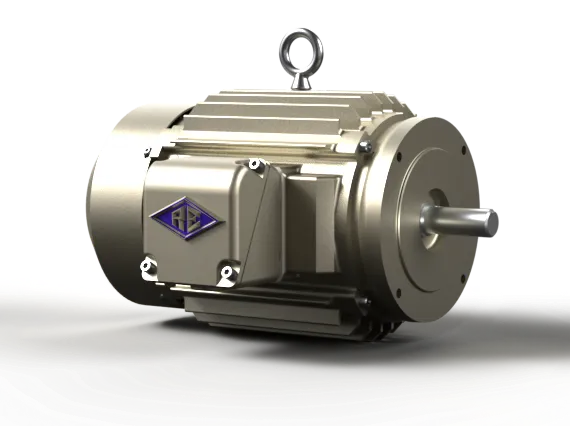

Reuland Electric
Jealco is proud to serve as a global distributor for Reuland Electric parts, which encompass a wide range of products including pump adapters, motors, and flexible couplings.
Here are several compelling reasons why a Reuland coupling stands out as the optimal choice:
- Meticulously crafted with top-quality materials, ensuring unrivaled precision.

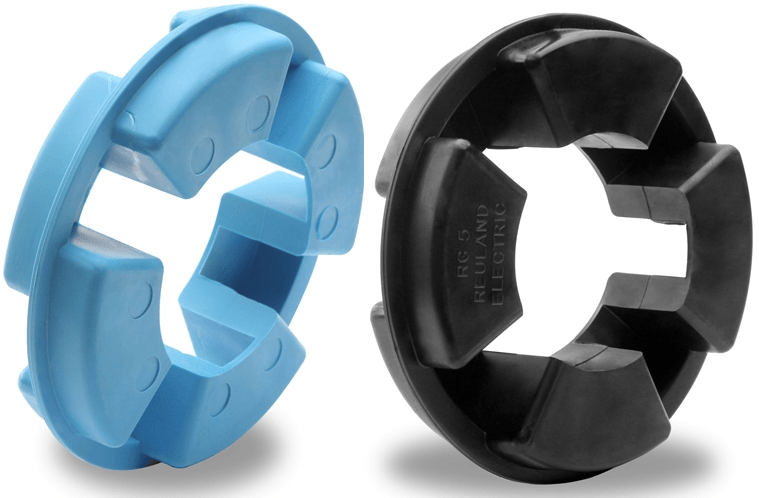

- Injection-molded elements (spiders, grommets) surpass the performance of compression-molded counterparts.
- Equipped with double set screws as a standard feature, enhancing security and reliability.
- Boasting one of the industry's most extensive selections of standard flexible couplings, Reuland also offers splines, metric bores, keys, and other specialized options that may be readily available.
- Custom options are also within reach, allowing for tailored solutions to meet specific requirements.
- Prompt delivery ensures a swift and efficient procurement process.
Jealco remains dedicated to delivering the exceptional Reuland Electric experience to clients worldwide.
5 - Select a Coupling Type
How to Select the Correct Coupling for your Application
1 - Determine the Service Factor (SF)
General Rule
LIGHT LOADS - Even or Steady Load – Non-Reversing (SF 1.0)
(Blowers • Centrifugal Pumps • Agitators • Conveyors • Fans)
MODERATE LOADS - Moderate Shock – Uneven Load – Infrequent Reversing (SF 1.5)
(Elevators • Mixers • Machine Tools • Reciprocating Pumps)
HEAVY LOADS - Heavy Shock – Uneven Load – Frequent Reversing (SF 2.0)
(Shaker Conveyors • Crushers • Winches • Presses)
2 - Determine Rated Torque
Rated Torque = (HP x 63000) / RPM x Service Factor
3 - Determine Shaft Size
Remember the shaft size must not exceed the coupling's maximum bore
4 - Select Coupling based on Rated Torque and Shaft Size Parameters
1 - Determine the Service Factor (SF)
General Rule
LIGHT LOADS - Even or Steady Load – Non-Reversing (SF 1.0)
(Blowers • Centrifugal Pumps • Agitators • Conveyors • Fans)
MODERATE LOADS - Moderate Shock – Uneven Load – Infrequent Reversing (SF 1.5)
(Elevators • Mixers • Machine Tools • Reciprocating Pumps)
HEAVY LOADS - Heavy Shock – Uneven Load – Frequent Reversing (SF 2.0)
(Shaker Conveyors • Crushers • Winches • Presses)
2 - Determine Rated Torque
Rated Torque = (HP x 63000) / RPM x Service Factor
3 - Determine Shaft Size
Remember the shaft size must not exceed the coupling's maximum bore
4 - Select Coupling based on Rated Torque and Shaft Size Parameters
| Size | Bore | Keyway | Model |
|---|---|---|---|
| RC1 | 3/8 | 3/32 | RC1‐0375‐093 * |
| RC1 | 7/16 | 3/32 | RC1‐0437‐093 * |
| RC1 | 7/16 | 1/8 | RC1‐0437‐125 * |
| RC1 | 1/2 | 1/8 | RC1‐0500‐125 |
| RC1 | 9/16 | 1/8 | RC1‐0562‐125 * |
| RC1 | 5/8 | 5/32 | RC1‐0625‐156 |
| RC1 | 5/8 | 3/16 | RC1‐0625‐187 |
| RC1 | 11/16 | 3/16 | RC1‐0687‐187 * |
| RC1 | 3/4 | 1/8 | RC1‐0750‐125 * |
| RC1 | 3/4 | 3/16 | RC1‐0750‐187 |
| RC1 | 7/8 | 3/16 | RC1‐0875‐187 |
| RC1 | 7/8 | 1/4 | RC1‐0875‐250 |
| RC1 | 15/16 | 1/4 | RC1‐0937‐250 * |
| RC1 | 1 | 3/16 | RC1‐1000‐187 * |
| RC1 | 1 | 1/4 | RC1‐1000‐250 |
| RC1 | 1‐1/8 | 1/4 | RC1‐1125‐250 |

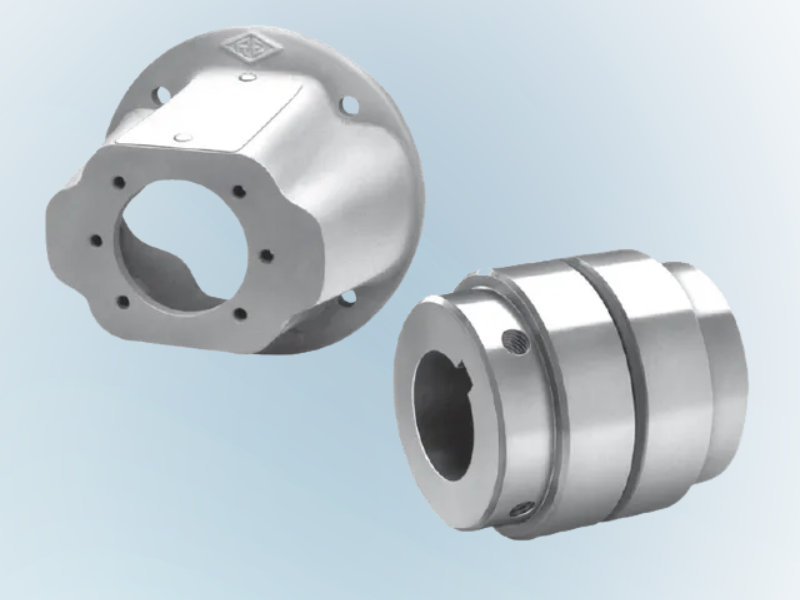

Shaft Couplings
* non-standard item
| Size | Bore | Keyway | Model |
|---|---|---|---|
| RC2 | 3/8 | 3/32 | RC2‐0375‐093 * |
| RC2 | 7/16 | 3/32 | RC2‐0437‐093 * |
| RC2 | 7/16 | 1/8 | RC2‐0437‐125 * |
| RC2 | 1/2 | 1/8 | RC2‐0500‐125 * |
| RC2 | 9/16 | 1/8 | RC2‐0562‐125 * |
| RC2 | 5/8 | 5/32 | RC2‐0625‐156 |
| RC2 | 5/8 | 3/16 | RC2‐0625‐187 |
| RC2 | 11/16 | 3/16 | RC2‐0687‐187 * |
| RC2 | 3/4 | 1/8 | RC2‐0750‐125 * |
| RC2 | 3/4 | 3/16 | RC2‐0750‐187 |
| RC2 | 7/8 | 3/16 | RC2‐0875‐187 |
| RC2 | 7/8 | 1/4 | RC2‐0875‐250 |
| RC2 | 15/16 | 1/4 | RC2‐0937‐250 * |
| RC2 | 1 | 3/16 | RC2‐1000‐187 * |
| RC2 | 1 | 1/4 | RC2‐1000‐250 |
| RC2 | 1‐1/8 | 1/4 | RC2‐1125‐250 |
| RC2 | 1‐3/16 | 1/4 | RC2‐1187‐250 * |
| RC2 | 1‐1/4 | 1/4 | RC2‐1250‐250 * |
| RC2 | 1‐1/4 | 5/16 | RC2‐1250‐312 |
| RC2 | 1‐3/8 | 5/16 | RC2‐1375‐312 |
| RC2 | 19 mm | 6 mm | RC2-M019-06 * |
| RC2 | 20 mm | 6 mm | RC2-M020-06 * |
| RC2 | 24 mm | 8 mm | RC2-M024-08 * |
| RC2 | 25 mm | 8 mm | RC2-M025-08 * |
| RC2 | 28 mm | 8 mm | RC2-M028-08 * |
| RC2 | 30 mm | 8 mm | RC2-M030-08 * |
| RC2 | 32 mm | 10 mm | RC2-M032-10 * |
* non-standard item
| Size | Bore | Keyway | Model |
|---|---|---|---|
| RC2 | 3/8 | 3/32 | RC2‐0375‐093 * |
| RC2 | 7/16 | 3/32 | RC2‐0437‐093 * |
| RC2 | 7/16 | 1/8 | RC2‐0437‐125 * |
| RC2 | 1/2 | 1/8 | RC2‐0500‐125 * |
| RC2 | 9/16 | 1/8 | RC2‐0562‐125 * |
| RC2 | 5/8 | 5/32 | RC2‐0625‐156 |
| RC2 | 5/8 | 3/16 | RC2‐0625‐187 |
| RC2 | 11/16 | 3/16 | RC2‐0687‐187 * |
| RC2 | 3/4 | 1/8 | RC2‐0750‐125 * |
| RC2 | 3/4 | 3/16 | RC2‐0750‐187 |
| RC2 | 7/8 | 3/16 | RC2‐0875‐187 |
| RC2 | 7/8 | 1/4 | RC2‐0875‐250 |
| RC2 | 15/16 | 1/4 | RC2‐0937‐250 * |
| RC2 | 1 | 3/16 | RC2‐1000‐187 * |
| RC2 | 1 | 1/4 | RC2‐1000‐250 |
| RC2 | 1‐1/8 | 1/4 | RC2‐1125‐250 |
| RC2 | 1‐3/16 | 1/4 | RC2‐1187‐250 * |
| RC2 | 1‐1/4 | 1/4 | RC2‐1250‐250 * |
| RC2 | 1‐1/4 | 5/16 | RC2‐1250‐312 |
| RC2 | 1‐3/8 | 5/16 | RC2‐1375‐312 |
| RC2 | 19 mm | 6 mm | RC2-M019-06 * |
| RC2 | 20 mm | 6 mm | RC2-M020-06 * |
| RC2 | 24 mm | 8 mm | RC2-M024-08 * |
| RC2 | 25 mm | 8 mm | RC2-M025-08 * |
| RC2 | 28 mm | 8 mm | RC2-M028-08 * |
| RC2 | 30 mm | 8 mm | RC2-M030-08 * |
| RC2 | 32 mm | 10 mm | RC2-M032-10 * |
* non-standard item
| Size | Bore | Keyway | Model |
|---|---|---|---|
| RC3 | 1/2 | 1/8 | RC3‐0500‐125 * |
| RC3 | 9/16 | 1/8 | RC3‐0562‐125 * |
| RC3 | 5/8 | 5/32 | RC3‐0625‐156 |
| RC3 | 5/8 | 3/16 | RC3‐0625‐187 |
| RC3 | 11/16 | 3/16 | RC3‐0687‐187 * |
| RC3 | 3/4 | 1/8 | RC3‐0750‐125 * |
| RC3 | 3/4 | 3/16 | RC3‐0750‐187 |
| RC3 | 7/8 | 3/16 | RC3‐0875‐187 |
| RC3 | 7/8 | 1/4 | RC3‐0875‐250 |
| RC3 | 15/16 | 1/4 | RC3‐0937‐250 * |
| RC3 | 1 | 3/16 | RC3‐1000‐187 * |
| RC3 | 1 | 1/4 | RC3‐1000‐250 |
| RC3 | 1‐1/8 | 1/4 | RC3‐1125‐250 |
| RC3 | 1‐3/16 | 1/4 | RC3‐1187‐250 * |
| RC3 | 1‐1/4 | 1/4 | RC3‐1250‐250 |
| RC3 | 1‐1/4 | 5/16 | RC3‐1250‐312 |
| RC3 | 1‐3/8 | 5/16 | RC3‐1375‐312 |
| RC3 | 1‐3/8 | 3/8 | RC3‐1375‐375 |
| RC3 | 1‐7/16 | 5/16 | RC3‐1437‐375 * |
| RC3 | 1‐1/2 | 5/16 | RC3‐1500‐312 |
| RC3 | 1‐1/2 | 3/8 | RC3‐1500‐375 |
| RC3 | 1‐5/8 | 3/8 | RC3‐1625‐375 |
| RC3 | 19 mm | 6 mm | RC3-M019-06 * |
| RC3 | 20 mm | 6 mm | RC3-M020-06 * |
| RC3 | 24 mm | 8 mm | RC3-M024-08 * |
| RC3 | 25 mm | 8 mm | RC3-M025-08 * |
| RC3 | 28 mm | 8 mm | RC3-M028-08 * |
| RC3 | 30 mm | 8 mm | RC3-M030-08 * |
| RC3 | 32 mm | 10 mm | RC3-M032-10 * |
* non-standard item
| Size | Bore | Keyway | Model |
|---|---|---|---|
| RC4 | 5/8 | 3/16 | RC4‐0625‐187 * |
| RC4 | 11/16 | 3/16 | RC4‐0687‐187 * |
| RC4 | 3/4 | 1/8 | RC4‐0750‐125 * |
| RC4 | 3/4 | 3/16 | RC4‐0750‐187 |
| RC4 | 7/8 | 3/16 | RC4‐0875‐187 |
| RC4 | 7/8 | 1/4 | RC4‐0875‐250 |
| RC4 | 15/16 | 1/4 | RC4‐0937‐250 * |
| RC4 | 1 | 3/16 | RC4‐1000‐187 * |
| RC4 | 1 | 1/4 | RC4‐1000‐250 |
| RC4 | 1‐1/8 | 1/4 | RC4‐1125‐250 * |
| RC4 | 1‐3/16 | 1/4 | RC4‐1187‐250 * |
| RC4 | 1‐1/4 | 1/4 | RC4‐1250‐250 * |
| RC4 | 1‐1/4 | 5/16 | RC4‐1250‐312 |
| RC4 | 1‐3/8 | 5/16 | RC4‐1375‐312 |
| RC4 | 1‐3/8 | 3/8 | RC4‐1375‐375 * |
| RC4 | 1‐7/16 | 5/16 | RC4‐1437‐375 * |
| RC4 | 1‐1/2 | 5/16 | RC4‐1500‐312 * |
| RC4 | 1‐1/2 | 3/8 | RC4‐1500‐375 |
| RC4 | 1‐5/8 | 3/8 | RC4‐1625‐375 |
| RC4 | 1‐3/4 | 3/8 | RC4‐1750‐375 * |
| RC4 | 1‐3/4 | 7/16 | RC4‐1750‐437 |
| RC4 | 1‐7/8 | 1/2 | RC4‐1875‐500 |
* non-standard item
| Size | Bore | Keyway | Model |
|---|---|---|---|
| RC5 | 3/4 | 3/16 | RC5‐0750‐187 * |
| RC5 | 7/8 | 3/16 | RC5‐0875‐187 * |
| RC5 | 7/8 | 1/4 | RC5‐0875‐250 * |
| RC5 | 15/16 | 1/4 | RC5‐0937‐250 * |
| RC5 | 1 | 3/16 | RC5‐1000‐187 * |
| RC5 | 1 | 1/4 | RC5‐1000‐250 |
| RC5 | 1‐1/8 | 1/4 | RC5‐1125‐250 |
| RC5 | 1‐3/16 | 1/4 | RC5‐1187‐250 * |
| RC5 | 1‐1/4 | 1/4 | RC5‐1250‐250 |
| RC5 | 1‐1/4 | 5/16 | RC5‐1250‐312 |
| RC5 | 1‐3/8 | 5/16 | RC5‐1375‐312 |
| RC5 | 1‐3/8 | 3/8 | RC5‐1375‐375 |
| RC5 | 1‐7/16 | 5/16 | RC5‐1437‐375 * |
| RC5 | 1‐1/2 | 5/16 | RC5‐1500‐312 * |
| RC5 | 1‐1/2 | 3/8 | RC5‐1500‐375 |
| RC5 | 1‐5/8 | 3/8 | RC5‐1625‐375 |
| RC5 | 1‐3/4 | 3/8 | RC5‐1750‐375 * |
| RC5 | 1‐3/4 | 7/16 | RC5‐1750‐437 |
| RC5 | 1‐7/8 | 1/2 | RC5‐1875‐500 |
| RC5 | 1‐15/16 | 1/2 | RC5‐1937‐500 * |
| RC5 | 2 | 1/2 | RC5‐2000‐500 * |
| RC5 | 2‐1/8 | 1/2 | RC5‐2125‐500 |
| RC5 | 2‐1/4 | 1/2 | RC5‐2250‐500 * |
| RC5 | 2‐3/8 | 5/8 | RC5‐2375‐625 |
* non-standard item
| Size | Bore | Keyway | Model |
|---|---|---|---|
| RC6 | 3/4 | 3/16 | RC6‐0750‐187 * |
| RC6 | 7/8 | 3/16 | RC6‐0875‐187 * |
| RC6 | 7/8 | 1/4 | RC6‐0875‐250 * |
| RC6 | 15/16 | 1/4 | RC6‐0937‐250 * |
| RC6 | 1 | 3/16 | RC6‐1000‐187 * |
| RC6 | 1 | 1/4 | RC6‐1000‐250 * |
| RC6 | 1‐1/8 | 1/4 | RC6‐1125‐250 |
| RC6 | 1‐3/16 | 1/4 | RC6‐1187‐250 * |
| RC6 | 1‐1/4 | 1/4 | RC6‐1250‐250 |
| RC6 | 1‐1/4 | 5/16 | RC6‐1250‐312 |
| RC6 | 1‐3/8 | 5/16 | RC6‐1375‐312 |
| RC6 | 1‐3/8 | 3/8 | RC6‐1375‐375 |
| RC6 | 1‐7/16 | 5/16 | RC6‐1437‐375 * |
| RC6 | 1‐1/2 | 5/16 | RC6‐1500‐312 |
| RC6 | 1‐1/2 | 3/8 | RC6‐1500‐375 |
| RC6 | 1‐5/8 | 3/8 | RC6‐1625‐375 |
| RC6 | 1‐3/4 | 3/8 | RC6‐1750‐375 |
| RC6 | 1‐3/4 | 7/16 | RC6‐1750‐437 |
| RC6 | 1‐7/8 | 1/2 | RC6‐1875‐500 |
| RC6 | 1‐15/16 | 1/2 | RC6‐1937‐500 * |
| RC6 | 2 | 1/2 | RC6‐2000‐500 * |
| RC6 | 2‐1/8 | 1/2 | RC6‐2125‐500 |
| RC6 | 2‐1/4 | 1/2 | RC6‐2250‐500 * |
| RC6 | 2‐3/8 | 5/8 | RC6‐2375‐625 |
| RC6 | 2‐1/2 | 5/8 | RC6‐2500‐625 * |
| RC6 | 2‐5/8 | 5/8 | RC6‐2625‐625 * |
* non-standard item
| Size | Bore | Keyway | Model |
|---|---|---|---|
| RC7 | 1‐1/4 | 1/2 | RC7‐1250‐250 * |
| RC7 | 1‐1/4 | 5/16 | RC7‐1250‐312 |
| RC7 | 1‐3/8 | 5/16 | RC7‐1375‐312 * |
| RC7 | 1‐3/8 | 3/8 | RC7‐1375‐375 * |
| RC7 | 1‐7/16 | 5/16 | RC7‐1437‐375 * |
| RC7 | 1‐1/2 | 5/16 | RC7‐1500‐312 |
| RC7 | 1‐1/2 | 3/8 | RC7‐1500‐375 |
| RC7 | 1‐5/8 | 3/8 | RC7‐1625‐375 |
| RC7 | 1‐3/4 | 3/8 | RC7‐1750‐375 |
| RC7 | 1‐3/4 | 7/16 | RC7‐1750‐437 |
| RC7 | 1‐7/8 | 1/2 | RC7‐1875‐500 |
| RC7 | 1‐15/16 | 1/2 | RC7‐1937‐500 * |
| RC7 | 2 | 1/2 | RC7‐2000‐500 |
| RC7 | 2‐1/8 | 1/2 | RC7‐2125‐500 |
| RC7 | 2‐1/4 | 1/2 | RC7‐2250‐500 * |
| RC7 | 2‐3/8 | 5/8 | RC7‐2375‐625 |
| RC7 | 2‐1/2 | 5/8 | RC7‐2500‐625 * |
| RC7 | 2‐5/8 | 5/8 | RC7‐2625‐625 * |
| RC7 | 2‐3/4 | 5/8 | RC7‐2750‐625 * |
| RC7 | 2‐7/8 | 3/4 | RC7‐2875‐750 |
* non-standard item
| Size | Bore | Keyway | Model |
|---|---|---|---|
| RC8 | 1‐1/4 | 1/4 | RC8‐1250‐250 * |
| RC8 | 1‐1/4 | 5/16 | RC8‐1250‐312 |
| RC8 | 1‐3/8 | 5/16 | RC8‐1375‐312 * |
| RC8 | 1‐3/8 | 3/8 | RC8‐1375‐375 * |
| RC8 | 1‐7/16 | 5/16 | RC8‐1437‐375 * |
| RC8 | 1‐1/2 | 5/16 | RC8‐1500‐312 * |
| RC8 | 1‐1/2 | 3/8 | RC8‐1500‐375 |
| RC8 | 1‐5/8 | 3/8 | RC8‐1625‐375 * |
| RC8 | 1‐3/4 | 3/8 | RC8‐1750‐375 |
| RC8 | 1‐3/4 | 7/16 | RC8‐1750‐437 |
| RC8 | 1‐7/8 | 1/2 | RC8‐1875‐500 |
| RC8 | 1‐15/16 | 1/2 | RC8‐1937‐500 * |
| RC8 | 2 | 1/2 | RC8‐2000‐500 |
| RC8 | 2‐1/8 | 1/2 | RC8‐2125‐500 |
| RC8 | 2‐1/4 | 1/2 | RC8‐2250‐500 * |
| RC8 | 2‐3/8 | 5/8 | RC8‐2375‐625 |
| RC8 | 2‐1/2 | 5/8 | RC8‐2500‐625 * |
| RC8 | 2‐5/8 | 5/8 | RC8‐2625‐625 * |
| RC8 | 2‐3/4 | 5/8 | RC8‐2750‐625 * |
| RC8 | 2‐7/8 | 3/4 | RC8‐2875‐750 |
| RC8 | 3 | 3/4 | RC8‐3000‐750 * |
| RC8 | 3‐1/4 | 3/4 | RC8‐3250‐750 * |
| RC8 | 3‐3/8 | 7/8 | RC8‐3375‐875 |
| RC8 | 3‐1/2 | 7/8 | RC8‐3500‐875 * |
| RC8 | 3‐5/8 | 7/8 | RC8‐3625‐875 * |
| RC8 | 3‐3/4 | 7/8 | RC8‐3750‐875 * |
| RC8 | 3‐7/8 | 1 | RC8‐3875‐100 * |
* non-standard item
| Size | Durometer | Material | Model |
|---|---|---|---|
| RC1 | 34D | Hytrel (Black) | RG1-L9 |
| 50D | Hytrel (Blue) | RG1-H5 | |
| RC2 | 34D | Hytrel (Black) | RG2-L9 |
| 50D | Hytrel (Blue) | RG2-H5 | |
| RC3 | 34D | Hytrel (Black) | RG3-L9 |
| 50D | Hytrel (Blue) | RG3-H5 | |
| RC4 | 34D | Hytrel (Black) | RG4-L9 |
| 50D | Hytrel (Blue) | RG4-H5 | |
| RC5 | 34D | Hytrel (Black) | RG5-L9 |
| 50D | Hytrel (Blue) | RG5-H5 | |
| RC6 | 34D | Hytrel (Black) | RG6-L9 |
| 50D | Hytrel (Blue) | RG6-H5 | |
| RC7 | 34D | Hytrel (Black) | RG7-L9 |
| 50D | Hytrel (Blue) | RG7-H5 | |
| RC8 | 34D | Hytrel (Black) | RG8-L9 |
| 50D | Hytrel (Blue) | RG8-H5 |
Elements
* non-standard item
Looking for something else?
Lets us know what you need in the quotation request below
Quotation Request
We will get back to you as soon as possible
Please try again later
302 Main Street #200
Jacksboro, TN 37757
Telephone: 770-998-2124
865-498-6256
sales@jealco.com
All Pictures shown on this website are for illustration purposes only. Actual product may vary.
Jealco is an independent reseller.
