Flexible Gravity Skatewheel and Roller Conveyors
Expandable conveyors that stretch, curve and store away, with no power needed. We supply FMH NestaFlex skatewheel and roller models, and Ashland and Hytrol flexible gravity conveyor.
No power
Package weight and a slight slope do the work.
Expands and stores
From about 8 ft closed to 60 ft open (68 ft on the 376 PL).
Curves to 180°
Around obstacles and across dock doors.
Up to 376 lb/ft
Heavy-duty NestaFlex 376 models.
Skatewheel or roller?
Choose by the bottom of your packages and their weight.
| Skatewheel | Roller | |
|---|---|---|
| Best for | Light to medium cartons with smooth, flat bottoms | Heavier packages, soft or uneven bottoms, mixed sizes |
| Handling | Lighter, easier to move and curve | Continuous support; steadier with heavy loads |
| Watch for | Not for irregular or very soft-bottomed loads | Heavier and bulkier to store |
| NestaFlex models | 226, 376 AL/FL, 376 PL | 200 |
FMH NestaFlex models
FMH Conveyors (Jonesboro, Arkansas) makes NestaFlex, the best-known name in flexible gravity conveyor.
| Model | Type | Capacity | Length | Height and widths |
|---|---|---|---|---|
| NestaFlex 226 | Skatewheel, low to medium volume | 226 lb per foot | 8 to 60 ft | Adjustable legs |
| NestaFlex 376 AL / FL | Skatewheel, heavy duty; double-welded cross braces | 376 lb per foot | 8 to 60 ft | AL adjustable or FL fixed legs, about 20 to 53 in; 18, 24, 30, 36 in wide |
| NestaFlex 376 PL | Skatewheel, heavy duty | 376 lb per foot | 20 to 68 ft | Fixed legs set to your application; 18 to 36 in wide |
| NestaFlex 200 | Roller, 1.375 in zinc-plated steel rollers | 200 lb per foot | 8 to 60 ft | About 20 to 52 in; 18, 24, 30 in wide |
Specifications per FMH Conveyors. All models curve up to 180°.

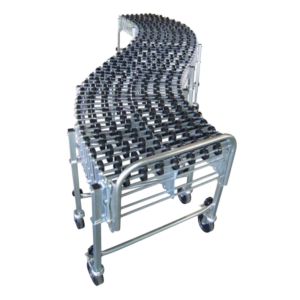

NestaFlex 226
- Capacity 226 lb/ft
- Length 8 to 60 ft
A lighter frame for easy moving, for retail fulfillment and light to medium cartons.

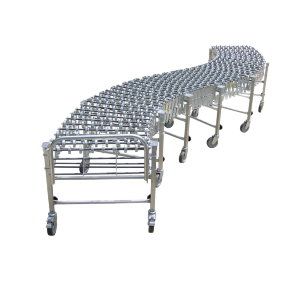

NestaFlex 376 AL / FL
- Capacity 376 lb/ft
- Legs Adjustable (AL) or fixed (FL)
Double-welded cross braces and square tubing legs, for busy shipping and receiving docks.

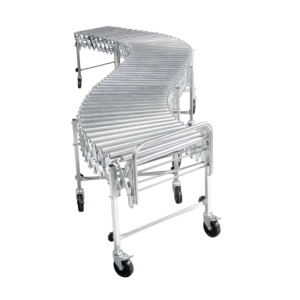

NestaFlex 200
- Capacity 200 lb/ft
- Rollers 1.375 in zinc-plated steel
For heavier cartons and packages with uneven bottoms at docks and in fulfillment.
What to send us
Packages
Size, weight and what the bottoms are like (smooth box, bag, tote).
Length
The closed and fully extended length you need.
Height and width
Working height at each end, and the conveyor width.
Layout
Straight, curved, or serving several dock doors.
Rate
How many packages per hour at peak.
Destination
Where it ships, for freight and export paperwork.
Need powered movement? See flexible powered conveyors. Replacement skatewheels: bearings and skate wheels. You can also browse the online conveyor catalog.
Flexible gravity conveyor FAQ
Should I choose a skatewheel or a roller flexible conveyor?
Skatewheel conveyors suit light to medium cartons with smooth, flat bottoms and are lighter and easier to curve. Roller conveyors give continuous support, so they handle heavier packages and items with soft or uneven bottoms better.
How much weight can a flexible gravity conveyor carry?
It depends on the model. FMH NestaFlex ratings are 200 lb per foot for the NestaFlex 200 roller model, 226 lb per foot for the 226 skatewheel model and 376 lb per foot for the heavy-duty 376 models.
How long can a flexible conveyor extend?
NestaFlex 226, 376 AL/FL and 200 models run from about 8 feet to 60 feet. The NestaFlex 376 PL runs from 20 to 68 feet. All can curve up to 180 degrees.
What do AL and FL mean on the NestaFlex 376?
AL has adjustable-height legs; FL has fixed-height legs. Both carry 376 lb per foot.
Can I add power later?
A gravity unit stays gravity, but a flexible powered conveyor such as the FMH BestFlex moves packages without relying on slope, at a variable speed. See our flexible powered conveyors page.
Tell us the packages, the length and the height
Package size, weight and bottom type, the closed and extended length, and the working heights. We will recommend the model and quote it with freight.
