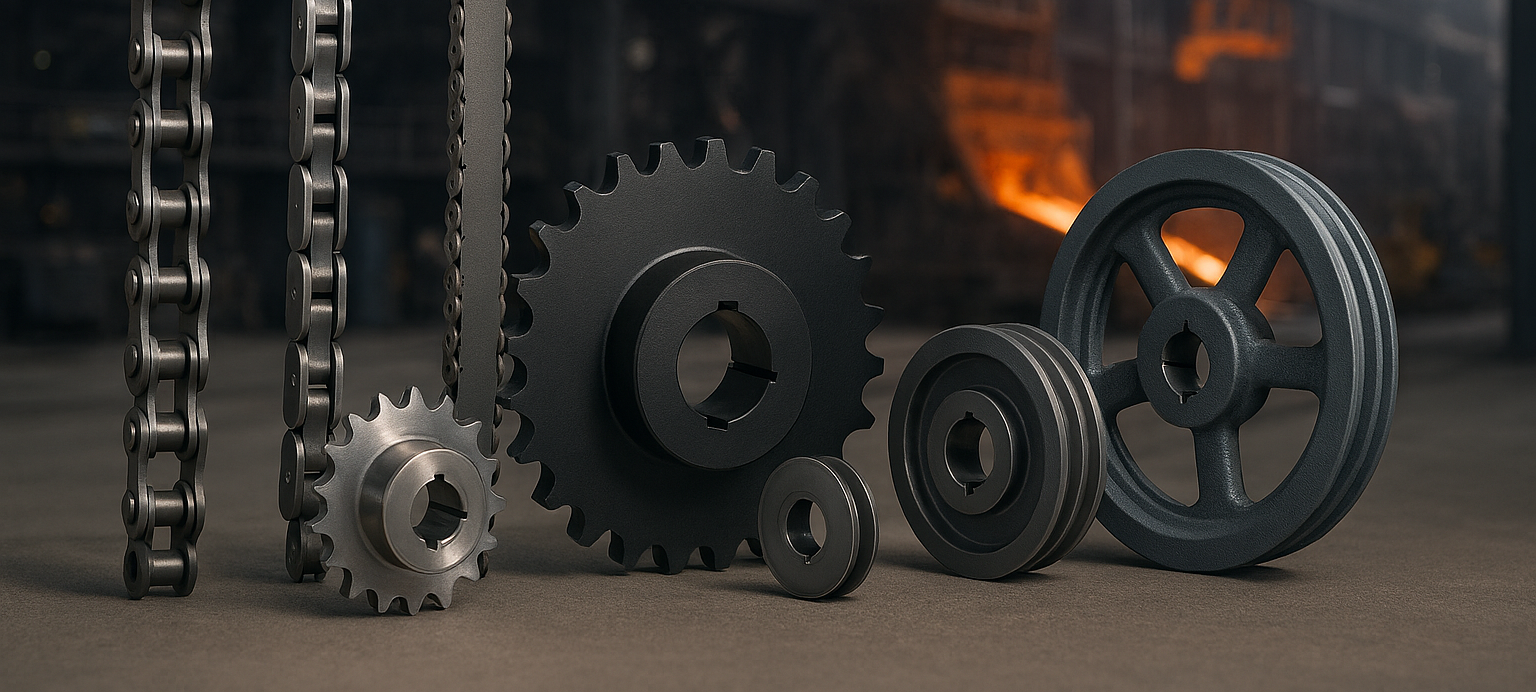

Industrial Chain, Sprockets, Sheaves and Pulleys
Roller, conveyor, leaf and silent chain, with the sprockets, sheaves, pulleys and bushings that go with them. We source from Renold, Tsubaki, Rexnord, Link-Belt, Browning, Martin, Dodge and more, and as an independent distributor we can match your drive across brands.
The whole drive
Chain, sprockets, sheaves, pulleys and bushings in one order.
ANSI and metric
ANSI (American) and ISO/British Standard chain and sprockets.
Standard or custom
Stock sizes, plus custom sprockets and sheaves made to drawing.
Many makers
Renold, Tsubaki, Rexnord, Link-Belt, Browning, Martin and more.
What we supply

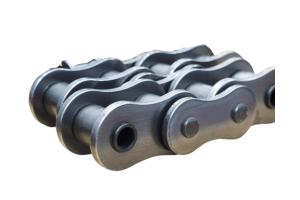

Industrial chain
- Standards ANSI and ISO/BS
- Options Stainless, nickel-plated, self-lubricating, heavy series
Drive and conveyor chain for manufacturing, food processing, agriculture, mining and material handling.

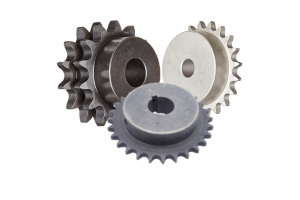

Sprockets
- Bores Plain, finished, QD or taper bushed
- Options Hardened teeth, stainless, custom to drawing
Sprockets to match your chain pitch, strands and tooth count, stock or made to order.

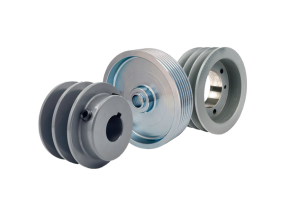

Sheaves and pulleys
- Types V-belt, variable pitch, wire rope, flat pulleys
- Bores Plain, QD or taper bushed
Sheaves and pulleys for belt drives, fans and HVAC, hoists and lifting equipment.
Chain types
Choose by what the chain has to do.
| Chain type | What it does | Typical use |
|---|---|---|
| Roller chain | Transmits power between sprockets | Machine drives, agriculture, packaging, automotive |
| Conveyor chain | Carries or pulls product, often with attachments | Food processing, bulk and unit handling |
| Leaf chain | Lifts over sheaves rather than driving sprockets | Forklift masts, lift and counterweight systems |
| Silent (inverted tooth) chain | Runs smoothly and quietly at high speed | Precision machinery, high-speed drives |
| Specialty chain | Resists corrosion, runs with little or no lubrication, or carries higher loads | Washdown, high temperature, harsh environments |
Brands we source
Jealco is an independent distributor, not tied to one maker, so we can match or cross your existing parts.
Chain
Browning, John King, Link-Belt, Morse, PEER Chain, Ramsey, Renold, Rexnord, Timken and Tsubaki.
Sprockets
Allied-Locke, Martin Sprocket & Gear, Regal Rexnord brands and Renold.
Sheaves and pulleys
Browning, Dodge, Martin Sprocket & Gear, Maurey, Regal Rexnord brands and TB Wood’s.
Need a brand not listed? Ask. Related: gearboxes, electric motors and flexible couplings.
Sheave or pulley?
A sheave is a grooved wheel that guides a belt, rope or cable. Pulley is the broader word: it can mean the wheel alone or the whole assembly of wheel, shaft and housing. In belt drives the terms are often used interchangeably, and a grooved V-belt pulley is usually called a sheave. Wire-rope sheaves are used on hoists, cranes and lifting systems; belt sheaves and pulleys on machinery, fans and HVAC.
Replacing chain or a sprocket: what to send us
Chain size
The ANSI number (for example 40, 60, 80) or ISO size (for example 08B), and single, double or triple strand.
Length
Number of pitches or overall length, and whether you need a connecting or offset link.
Sprocket
Number of teeth, hub style, and bore: plain, finished with keyway, or QD or taper bushed.
Sheave
Belt section (for example A, B, 3V, 5V), number of grooves, pitch diameter and bushing.
Environment
Washdown, corrosion, heat or dust, so we can suggest stainless or specialty options.
A photo
Of the part and any markings or part numbers on it.
Chain, sprocket and sheave FAQ
How do I read an ANSI roller chain number?
The digits before the last one give the pitch in eighths of an inch, so 40 chain has a 4/8 = 1/2 inch pitch and 60 chain has a 3/4 inch pitch. A final 0 means standard roller chain. A suffix such as -2 or -3 means double or triple strand, and H means heavy series.
Can I use ANSI and ISO (British Standard) chain together?
Generally no. ANSI 40 and ISO 08B are both 1/2 inch pitch, but their roller diameters and widths differ, so they do not mesh correctly with each other's sprockets. Match the chain to the sprocket standard, or replace both.
What is the difference between a sheave and a pulley?
A sheave is a grooved wheel that guides a belt, rope or cable. Pulley can mean the wheel alone or the whole assembly. In belt drives the terms are often used interchangeably, and a grooved V-belt pulley is usually called a sheave.
What are QD and taper bushings?
They are split, tapered bushings that clamp a sprocket or sheave to the shaft. One sprocket or sheave can fit several shaft sizes by changing the bushing, and they are easier to install and remove than a plain bore with set screws.
When should I choose stainless or self-lubricating chain?
Stainless chain suits washdown, food processing and corrosive areas. Self-lubricating chain suits places where regular lubrication is difficult or oil would contaminate the product. Tell us the environment and we will suggest the right option.
Which brands does Jealco source?
Chain from Browning, John King, Link-Belt, Morse, PEER Chain, Ramsey, Renold, Rexnord, Timken and Tsubaki; sprockets from Allied-Locke, Martin and Renold; sheaves and pulleys from Browning, Dodge, Martin, Maurey and TB Wood's. We can source other brands on request.
Send the chain size, the sprocket and a photo
The chain number and strands, the sprocket teeth and bore, or the sheave's belt section and grooves. We will match it or suggest an equivalent.
