Light Duty Conveyor Belting

PERFECT FOR PACKAGING, FOOD, AND LIGHT MANUFACTURING

  • High-performance light duty conveyor belts designed to maximize the lifespan and efficiency of your package handling applications.
  • Available in a wide range of durable materials, styles, and specialized compounds.
  • Customizable belt lengths and widths.
  • Trust Jealco for reliable, long-lasting conveyor belt solutions tailored to your specific requirements.

Below are some of our most popular belts.  If you do not find what you are looking for, please contact us and we will be happy to assist:


Vocabulary:

DUCK: a dense, plain-woven canvas carcass material typically cotton or synthetic

FDA: US Food & Drug Administration Approved

MOR: Moderate Oil Resistance

Neoprene: Polychloroprene - a synthetic rubber resistance to oil, heat, chemicals, and weather

Nitrile (NBR - Nitrile Butadiene Rubber): synthetic rubber specifically engineered for superior resistance to oils, grease, fats, and various chemicals

Natural Rubber

MOR: Moderate Oil Resistance

Poly/Nylon (aka PN or EP): a type of industrial conveyor belt featuring Polyester (E) fibres in the lengthwise direction (warp) and Nylon (P) fibres in the crosswise direction (weft), covered by rubber.

SBR: Styrene-Butadiene Rubber - synthetic rubber

Silicone: a high-performance, heat-resistant material designed for handling sticky, delicate, or hot products

Static Conductive

SWC (Solid Woven Cotton): a durable, non-rubberized, and often food-grade belt formed from multiple plies of cotton interwoven into a single, cohesive unit

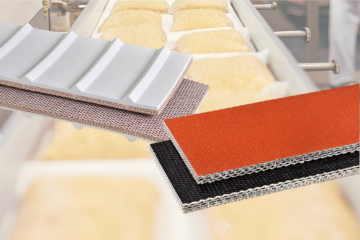

Food conveyor belt samples in various colors and textures.
Belt PIW Plys Compound Top Cover Bottom Cover Overall Thickness More Infomation

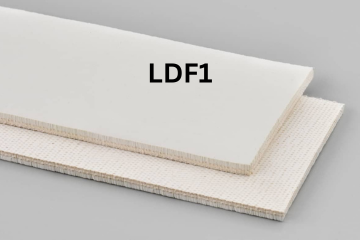

Light Duty Food conveyor belt labeled LDF1 with description of 2-Ply 15 OZ. White Nitrile COS 35 2 Nitrile 3/64 FS 0.094 (3/32) More Info / Request Quote
Light Duty Food conveyor belt labeled LDF2 with description of 3-Ply 15 OZ. White Nitrile COS 52 3 White Nitrile (FDA) 3/64 FS 0.125 (1/8) More Info / Request Quote

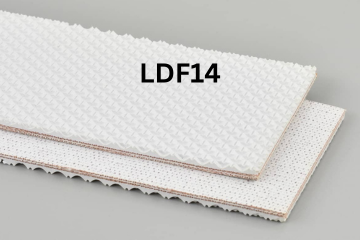

Light Duty Food conveyor belt labeled LDF14 with description of 2-Ply Poly 60 White Nitrile Pebbletop 60 2 White Nitrile (FDA) 1/32 FS 0.094 (3/32) More Info / Request Quote
Light Duty Food conveyor belt labeled LDF5 with description of 2-Ply Poly 60 White Nitrile COS 60 2 White Nitrile (FDA) 1/32 FS 0.078 (5/64) More Info / Request Quote
Light Duty Food conveyor belt labeled LDF3 with description of 4-Ply 15 OZ. White Nitrile COS 64 4 White Nitrile (FDA) 3/64 FS 0.1563 (5/32) More Info / Request Quote
Light Duty Food conveyor belt labeled LDF17 with description of 3-Ply 90 Green Nitrile COS 90 5 White Nitrile (FDA) 3/64 FS 0.094 (3/32) More Info / Request Quote
Light Duty Food conveyor belt labeled LDF6 with description of 3-Ply Poly 90 White Nitrile COS 90 3 White Nitrile (FDA) 1/32 FS 0.094 (3/32) More Info / Request Quote
Light Duty Food conveyor belt labeled LDF15 with description of 3-Ply Poly 90 White Nitrile Pebbletop 90 3 White Nitrile (FDA) 1/32 FS 0.125 (1/8) More Info / Request Quote
Light Duty Food conveyor belt labeled LDF7 with description of 2-Ply Poly 100 White Nitrile COS 100 2 White Nitrile (FDA) 3/64 FS 0.109 (7/64) More Info / Request Quote
Light Duty Food conveyor belt labeled LDF10 with description of 2-Ply Poly 100 White RMV COS 100 2 White Nitrile (FDA) 3/64 FS 0.125 (1/8) More Info / Request Quote
Light Duty Food conveyor belt labeled LDF13 with description of 3-Ply Poly 105 White Teflon COS 105 3 White Nitrile (FDA) 3/64 FS 0.0625 (1/16) More Info / Request Quote
Light Duty Food conveyor belt labeled LDF12 with description of 3-Ply Poly 105 White Butyl COS 105 3 White Nitrile (FDA) 1/32 FS 0.094 (3/32) More Info / Request Quote

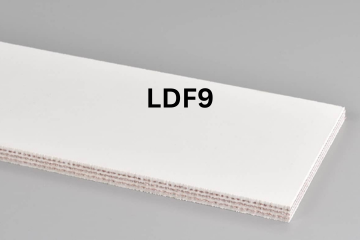

Light Duty Food conveyor belt labeled LDF9 with description of 3-Ply Poly 135 White Nitrile 1/32 X 1/32 135 3 White Nitrile (FDA) 1/32 1/32 0.1875 (3/16) More Info / Request Quote

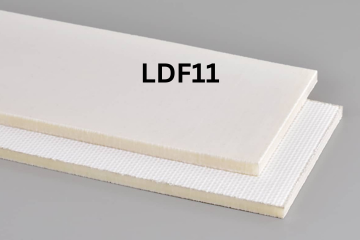

Light Duty Food conveyor belt labeled LDF11 with description of 3-Ply Poly 150 White RMV COS 150 3 White Nitrile (FDA) 3/64 FS 0.141 (9/64) More Info / Request Quote
Light Duty Food conveyor belt labeled LDF18 with description of 3-Ply 150 Tan Nitrile COS 150 3 White Nitrile (FDA) 1/32 FS 0.141 (9/64) More Info / Request Quote
Light Duty Food conveyor belt labeled LDF8 with description of 3-Ply Poly 150 White Nitrile COS 150 3 White Nitrile (FDA) 3/64 FS 0.156 (5/32) More Info / Request Quote
Light Duty Food conveyor belt labeled LDF16 with description of 3-Ply Poly 150 White Nitrile Meatcleat 150 3 White Nitrile (FDA) 3/64 FS 0.25 (1/4) More Info / Request Quote
Light Duty Food conveyor belt labeled LDF1 with description of 2-Ply 15 OZ. White Nitrile COS

35

2

Nitrile

3/64

FS

0.094(3/32)

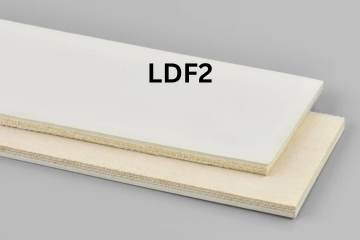

Light Duty Food conveyor belt labeled LDF2 with description of 2-Ply 15 OZ. White Nitrile COS

52

3

White Nitrile (FDA)

3/64

FS

0.125 (1/8)

Light Duty Food conveyor belt labeled LDF14 with description of 2-Ply Poly 60 White Nitrile Pebbletop

60

2

White Nitrile (FDA)

1/32

FS

0.094 (3/32)

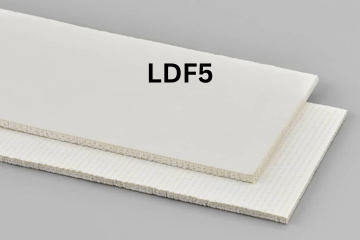

Light Duty Food conveyor belt labeled LDF5 with description of 2-Ply Poly 60 White Nitrile COS

60

2

White Nitrile (FDA)

1/32

FS

0.078 (5/64)

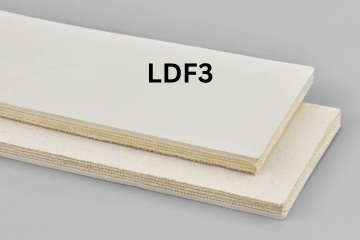

Light Duty Food conveyor belt labeled LDF3 with description of 4-Ply 15 OZ. White Nitrile COS

64

4

White Nitrile (FDA)

3/64

FS

0.156 (5/32)

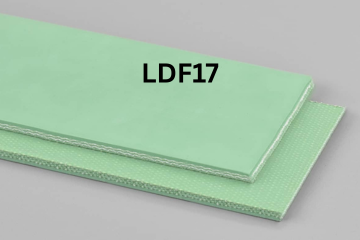

Light Duty Food conveyor belt labeled LDF17 with description of 3-Ply 90 Green Nitrile COS

80

5

White Nitrile (FDA)

3/64

FS

0.094 (3/32)

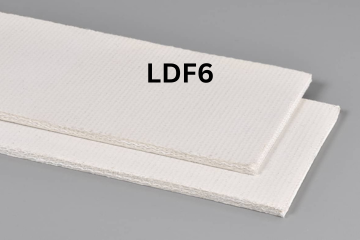

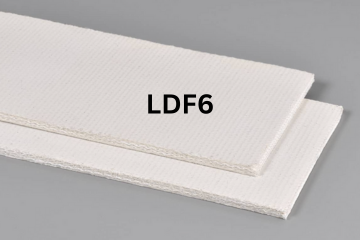

Light Duty Food conveyor belt labeled LDF6 with description of 3-Ply Poly 90 White Nitrile COS

90

3

White Nitrile (FDA)

1/32

FS

0.094 (3/32)

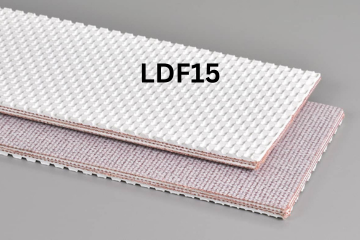

Light Duty Food conveyor belt labeled LDF15 with description of 3-Ply Poly 90 White Nitrile Pebbletop

90

3

White Nitrile (FDA)

1/32

FS

0.125 (1/8)

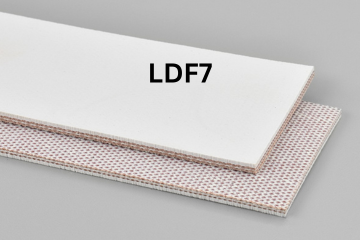

Light Duty Food conveyor belt labeled LDF7 with description of 2-Ply Poly 100 White Nitrile COS

100

2

White Nitrile (FDA)

3/64

FS

0.109 (7/64)

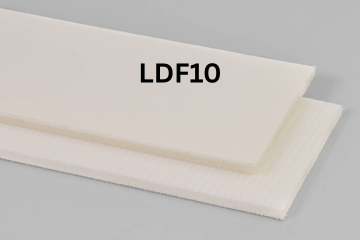

Light Duty Food conveyor belt labeled LDF10 with description of 2-Ply Poly 100 White RMV COS

100

2

White Nitrile (FDA)

3/64

FS

0.125 (1/8)

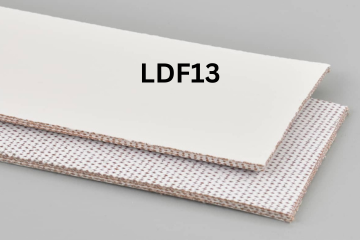

Light Duty Food conveyor belt labeled LDF13 with description of 3-Ply Poly 105 White Teflon COS

105

3

White Nitrile (FDA)

3/64

FS

0.0625 (1/16)

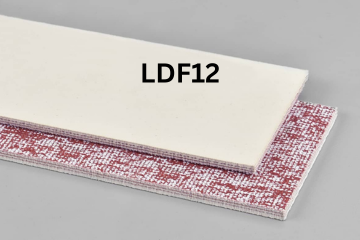

Light Duty Food conveyor belt labeled LDF12 with description of 3-Ply Poly 105 White Butyl COS

105

3

White Nitrile (FDA)

1/32

FS

0.094 (3/32)

Light Duty Food conveyor belt labeled LDF9 with description of 3-Ply Poly 135 White Nitrile 1/32 X 1/32

135

3

White Nitrile (FDA)

1/32

1/32

0.1875 (3/16)

Light Duty Food conveyor belt labeled LDF11 with description of 3-Ply Poly 150 White RMV COS

150

3

White Nitrile (FDA)

3/64

FS

0.141 (9/64)

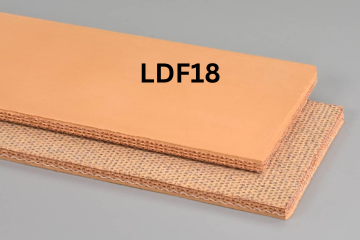

Light Duty Food conveyor belt labeled LDF18 with description of 3-Ply 150 Tan Nitrile COS

150

3

White Nitrile (FDA)

1/32

FS

0.141 (9/64)

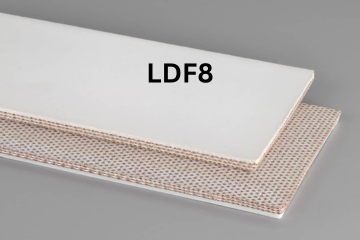

Light Duty Food conveyor belt labeled LDF8 with description of 3-Ply Poly 150 White Nitrile COS

150

3

White Nitrile (FDA)

3/64

FS

0.156 (5/32)

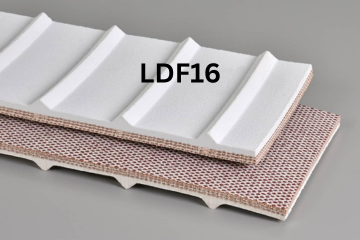

Light Duty Food conveyor belt labeled LDF16 with description of 3-Ply Poly 150 White Nitrile Meatcleat

150

3

White Nitrile (FDA)

3/64

FS

0.25 (1/4)

Belt PIW Plys Compound Top Cover Bottom Cover Overall Thickness More Information
Light Duty General Purpose conveyor belt labeled LDGP1 with description of 3-Ply Brown Nitrile FBS 36 3 Nitrile FS FS 0.0625 (1/16) More Info / Request Quote
Light Duty General Purpose conveyor belt labeled LDGP1 with description of 3-Ply Brown Nitrile FBS 48 4 Nitrile Bare FS 0.125 (1/8) More Info / Request Quote

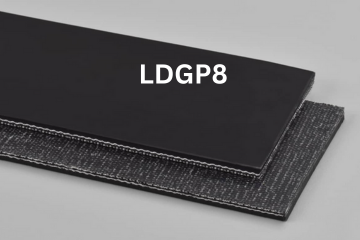

Light Duty General Purpose conveyor belt labeled LDGP8 with description of 2-Ply CP30 Black Nitrile COS 60 2 Nitrile 3/64 FS 0.938 (3/32) More Info / Request Quote
Light Duty General Purpose conveyor belt labeled LDGP2 with description of 5-Ply Brown Nitrile FBS 60 5 Nitrile FS FS 0.109 (7/64) More Info / Request Quote
Light Duty General Purpose conveyor belt labeled LDGP10 with description of 2-Ply Poly 70 PIW Black Checkout Belt 70 2 Nitrile 1/32 FS 0.0625 (1/16) More Info / Request Quote

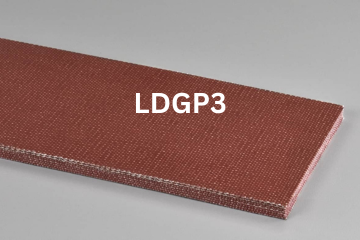

Light Duty General Purpose conveyor belt labeled LDGP3 with description of 7-Ply Brown Nitrile FBS 84 7 Nitrile FS FS 0.1563 (5/32) More Info / Request Quote

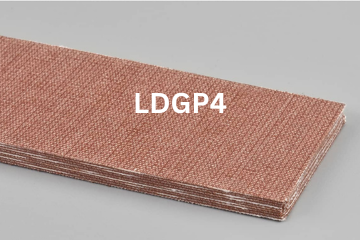

Light Duty General Purpose conveyor belt labeled LDGP4 with description of 9-Ply Brown Nitrile FBS 108 9 Nitrile FS FS 0.203 (13/64) More Info / Request Quote
Light Duty General Purpose conveyor belt labeled LDGP4 with description of 9-Ply Brown Nitrile FBS 135 3 Nitrile 3/64 FS 0.141 (9/64) More Info / Request Quote
Light Duty General Purpose conveyor belt labeled LDGP6 with description of 4-Ply Poly 180 PIW Black Neoprene FBS-SC 180 4 Neoprene FS FS 0.109 (7/64) More Info / Request Quote

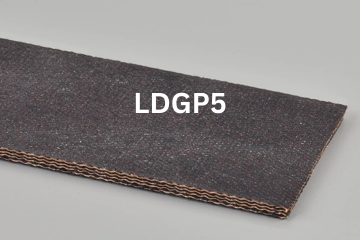

Light Duty General Purpose conveyor belt labeled LDGP5 with description of 4-Ply Poly 180 PIW Black Heavy Duty Nitrile FBS 200 4 Nitrile FS FS 0.1563 (5/32) More Info / Request Quote
Light Duty General Purpose conveyor belt labeled LDGP7 with description of 5-Ply Poly 225 PIW Black Heavy Duty Nitrile FBS 225 5 Nitrile FS FS 0.172 (11/64) More Info / Request Quote
Belt
PIW
Plys
Compound
Top Cover
Bottom Cover
Overall Thickness
More Information

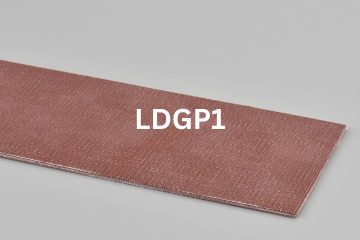

Light Duty General Purpose conveyor belt labeled LDGP1 with description of 3-Ply Brown Nitrile FBS

36

3

Nitrile

FS

FS

0.0625 (1/16)

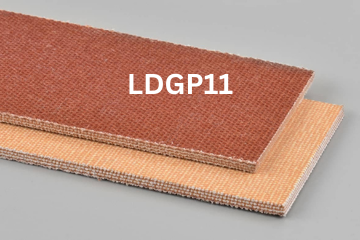

Light Duty General Purpose conveyor belt labeled LDGP11 with description of 4-Ply Tan Sliptop

48

4

Nitrile

Bare

FS

0.125 (1/8)

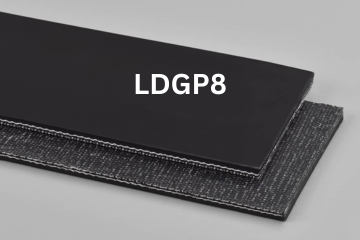

Light Duty General Purpose conveyor belt labeled LDGP8 with description of 2-Ply CP30 Black Nitrile COS

60

2

Nitrile

3/64

FS

0.938 (3/32)

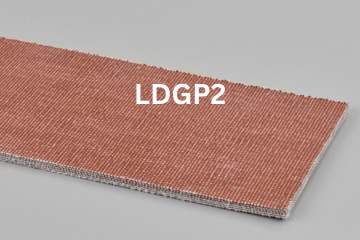

Light Duty General Purpose conveyor belt labeled LDGP2 with description of 5-Ply Brown Nitrile FBS

60

5

Nitrile

FS

FS

0.109 (7/64)

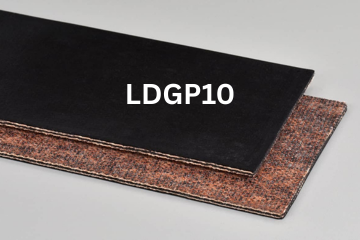

Light Duty General Purpose conveyor belt labeled LDGP10 with description of 2-Ply Poly 70 PIW Black Checkout Belt

70

2

Nitrile

1/32

FS

0.0625 (1/16)

Light Duty General Purpose conveyor belt labeled LDGP3 with description of 7-Ply Brown Nitrile FBS

84

7

Nitrile

FS

FS

0.1563 (5/32)

Light Duty General Purpose conveyor belt labeled LDGP4 with description of 9-Ply Brown Nitrile FBS

108

9

Nitrile

FS

FS

0.203 (13/64)

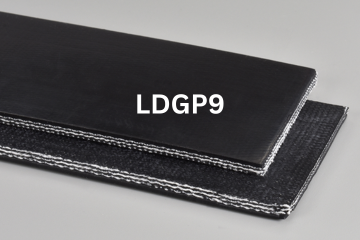

Light Duty General Purpose conveyor belt labeled LDGP9 with description of 3-Ply Poly 135 PIW Black Nitrile COS

135

3

Nitrile

3/64

FS

0.141 (9/64)

Light Duty General Purpose conveyor belt labeled LDGP6 with description of 4-Ply Poly 180 PIW Black Neoprene FBS-SC

180

4

Neoprene

FS

FS

0.109 (7/64)

Light Duty General Purpose conveyor belt labeled LDGP5 with description of 4-Ply Poly 180 PIW Black Heavy Duty Nitrile FBS

200

4

Nitrile

FS

FS

0.1563 (5/32)

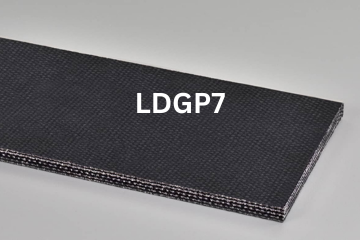

Light Duty General Purpose conveyor belt labeled LDGP7 with description of 5-Ply Poly 225 PIW Black Heavy Duty Nitrile FBS

225

5

Nitrile

FS

FS

0.172 (11/64)

120
Belt PIW Plys Compound Top Cover Bottom Cover Overall Thickness More Information

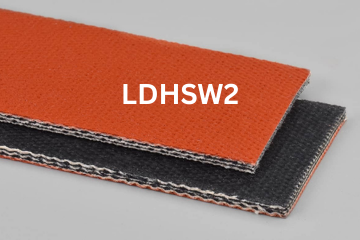

Light Duty Hot Stock & Water conveyor belt labeled LDHSW2 with description of 3-Ply Red Silicone Cover Hot Stock & Water 90 3 Red Silicone/Black SBR 1/64 FS 0.125 (1/8) More Info / Request Quote
Light Duty Hot Stock & Water conveyor belt labeled LDHSW1 with description of 3-Ply Hot Stock & Water 90 3 White Duck/Black SBR Bare FS 0.141 (9/64) More Info / Request Quote
Light Duty Hot Stock & Water conveyor belt labeled LDHSW4 with description of 3-Ply HS&W W/ 1/32 White Smooth Silicone X FS 90 3 White Silicone/Black SBR 1/32 FS 0.156 (5/32) More Info / Request Quote
Light Duty Hot Stock & Water conveyor belt labeled LDHSW3 with description of 4-Ply Red Silicone Cover Hot Stock & Water 120 4 Red Silicone/Black SBR 1/32 FS 0.1875 (3/16) More Info / Request Quote
Light Duty Hot Stock & Water conveyor belt labeled LDHSW5 with description of 4-Ply Hot Stock & Water 120 4 White Duck/Black SBR Bare FS 0.1875 (3/16) More Info / Request Quote
Belt
PIW
Plys
Compound
Top Cover
Bottom Cover
Overall Thickness
More Information
Light Duty Hot Stock & Water conveyor belt labeled LDHSW2 with description of 3-Ply Red Silicone Cover Hot Stock & Water

90

3

Red Silicone/Black SBR

1/64

FS

0.125 (1/8)

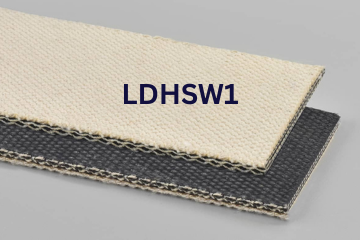

Light Duty Hot Stock & Water conveyor belt labeled LDHSW1 with description of 3-Ply Hot Stock & Water

90

3

White Duck/Black SBR

Bare

FS

0.141 (9/64)

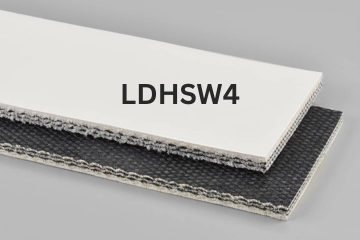

Light Duty Hot Stock & Water conveyor belt labeled LDHSW4 with description of 3-Ply HS&W W/ 1/32 White Smooth Silicone X FS

90

3

White Silicone/Black SBR

1/32

FS

0.156 (5/32)

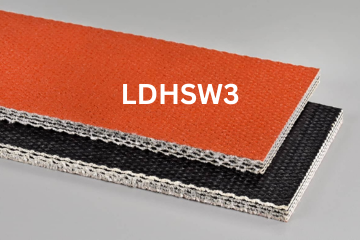

Light Duty Hot Stock & Water conveyor belt labeled LDHSW3 with description of 4-Ply Red Silicone Cover Hot Stock & Water

120

4

Red Silicone/Black SBR

1/32

FS

0.1875 (3/16)

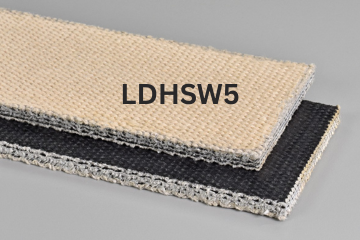

Light Duty Hot Stock & Water conveyor belt labeled LDHSW5 with description of 4-Ply Hot Stock & Water

120

4

White Duck/Black SBR

Bare

FS

0.1875 (3/16)

Belt PIW Plys Compound Top Cover Bottom Cover Overall Thickness More Information
Light Duty Package Handling conveyor belt labeled LDPH1 with description of 3-Ply CP30 Black 1/16 X FS 90 3 SBR 1/16 FS 0.219 (7/32) More Info / Request Quote

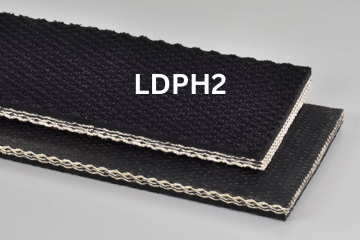

Light Duty Package Handling conveyor belt labeled LDPH2 with description of 3-Ply CP30 Black 1/16 Pebbletop X FS 90 3 SBR 1/16 FS 0.219 (7/32) More Info / Request Quote
Light Duty Package Handling conveyor belt labeled LDPH5 with description of 2-Ply 160 PIW Black 1/8 X Bare MOR 160 2 Nitrile 1/8 Bare 0.219 (7/32) More Info / Request Quote
Light Duty Pkg. Handling conveyor belt labeled LDPH6 with description of 4-Ply 180 PIW Black 3/32 Smooth Nitrile Top X Bare 180 4 Nitrile 5/16 Bare 0.25 (1/4) More Info / Request Quote

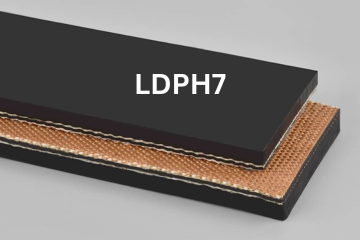

Light Duty Package Handling conveyor belt labeled LDPH7 with description of 2-Ply 220 PIW Black 1/8 X Bare MOR 220 2 MOR 1/8 Bare 0.234 (15/64) More Info / Request Quote
Light Duty Pkg. Handling conveyor belt labeled LDPH3 with description of 2-Ply 220 PIW Tan Bare X Bare 220 2 Poly / Nylon Bare Bare 0.156 (5/32) More Info / Request Quote
Belt
PIW
Plys
Compound
Top Cover
Bottom Cover
Overall Thickness
More Information

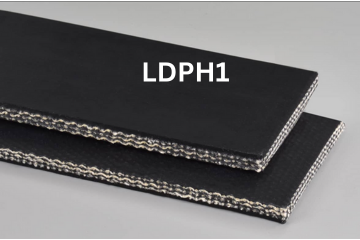

Light Duty Package Handling conveyor belt labeled LDPH1 with description of 3-Ply CP30 Black 1/16 X FS

90

3

SBR

1/16

FS

0.219 (7/32)

Light Duty Package Handling conveyor belt labeled LDPH2 with description of 3-Ply CP30 Black 1/16 Pebbletop X FS

90

3

SBR

1/16

FS

0.219 (7/32)

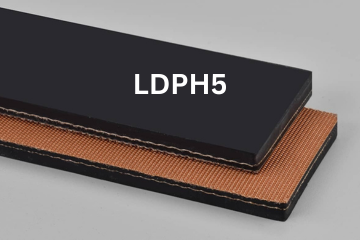

Light Duty Package Handling conveyor belt labeled LDPH5 with description of 2-Ply 160 PIW Black 1/8 X Bare MOR

160

2

Nitrile

1/8

Bare

0.219 (7/32)

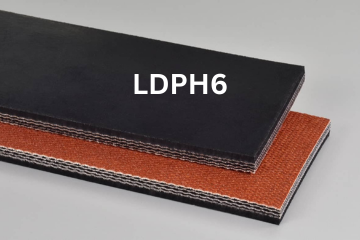

Light Duty Pkg. Handling conveyor belt labeled LDPH6 with description of 4-Ply 180 PIW Black 3/32 Smooth Nitrile Top X Bare

180

4

Nitrile

5/64

Bare

0.25 (1/4)

Light Duty Package Handling conveyor belt labeled LDPH7 with description of 2-Ply 220 PIW Black 1/8 X Bare MOR

220

2

MOR

1/8

Bare

0.234 (15/64)

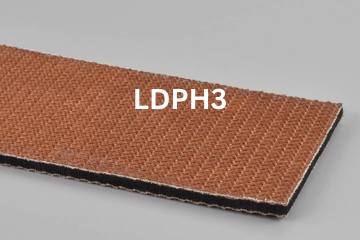

Light Duty Pkg. Handling conveyor belt labeled LDPH3 with description of 2-Ply 220 PIW Tan Bare X Bare

220

2

Poly / Nylon

Bare

Bare

0.156 (5/32)

Belt PIW Plys Compound Top Cover Bottom Cover Overall Thickness More Information

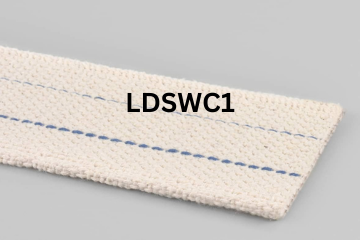

Light Duty Solid Woven Cotton conveyor belt labeled LDSWC1 with description of 2-Ply Solid Woven Cotton 45 2 Solid-Woven Cotton Fabric Fabric 0.094 (3/32) More Info / Request Quote
Light Duty Solid Woven Cotton conveyor belt labeled LDSWC2 with description of 3-Ply Solid Woven Cotton 75 3 Solid-Woven Cotton Fabric Fabric 0.125 (1/8) More Info / Request Quote

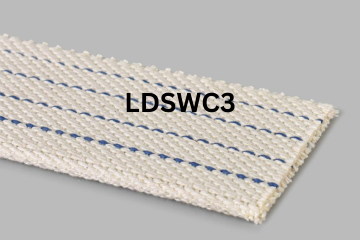

Light Duty Solid Woven Cotton conveyor belt labeled LDSWC3 with description of 4-Ply Solid Woven Cotton 110 4 Solid-Woven Cotton Bare Fabric 0.1875 (3/16) More Info / Request Quote
Belt
PIW
Plys
Compound
Top Cover
Bottom Cover
Overall Thickness
More Information
Light Duty Solid Woven Cotton conveyor belt labeled LDSWC1 with description of 2-Ply Solid Woven Cotton

45

2

Solid-Woven Cotton

Fabric

Fabric

0.094 (3/32)

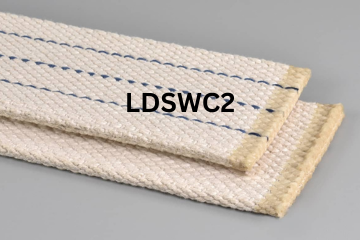

Light Duty Solid Woven Cotton conveyor belt labeled LDSWC2 with description of 3-Ply Solid Woven Cotton

75

3

Solid-Woven Cotton

Fabric

Fabric

0.125 (1/8)

Light Duty Solid Woven Cotton conveyor belt labeled LDSWC3 with description of 4-Ply Solid Woven Cotton

110

4

Solid-Woven Cotton

Bare

Fabric

0.1875 (3/16)

Belt PIW Plys Compound Top Cover Bottom Cover Overall Thickness More Information
Light Duty Transmission conveyor belt labeled LDT1 with description of 3-Ply CP30 Black FS X FS 90 3 SBR FS FS 0.125 (1/8) More Info / Request Quote

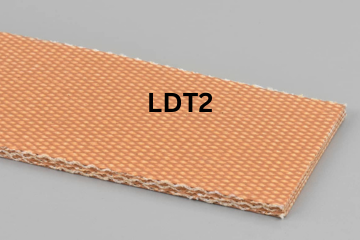

Light Duty Transmission conveyor belt labeled LDT2 with description of 3-Ply CP30 Tan FS X FS 90 3 SBR FS FS 0.141 (9/64) More Info / Request Quote
Light Duty Transmission conveyor belt labeled LDT3 with description of 4-Ply CP30 Tan FS X FS 120 4 SBR FS FS 0.1875 (3/16) More Info / Request Quote

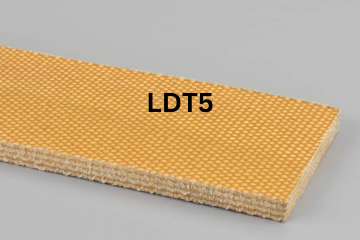

Light Duty Transmission conveyor belt labeled LDT5 with description of 4-Ply 35 Oz. Tan Silver Hard Duck X FS 140 4 SBR FS FS 0.2344 (15/64) More Info / Request Quote

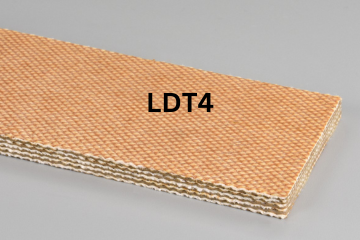

Light Duty Transmission conveyor belt labeled LDT4 with description of 5-Ply CP30 X FS 150 5 SBR FS FS 0.25 (1/4) More Info / Request Quote

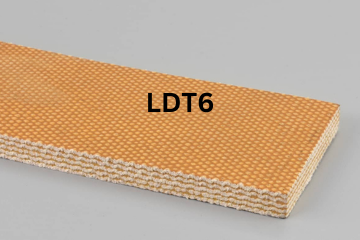

Light Duty Transmission conveyor belt labeled LDT6 with description of 5-Ply 35 Oz. Tan Silver Hard Duck X FS 175 5 SBR FS FS 0.3125 (5/16) More Info / Request Quote

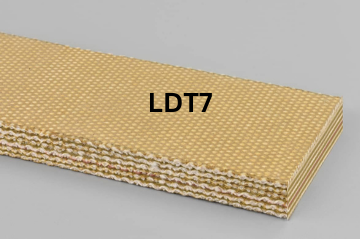

Light Duty Transmission conveyor belt labeled LDT7 with description of 6-Ply 35 Oz. Tan Silver Hard Duck X FS 210 6 SBR FS FS 0.375 (3/8) More Info / Request Quote

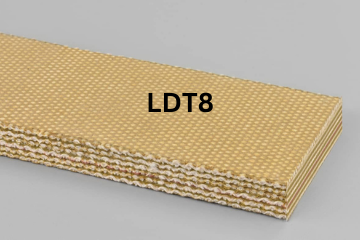

Light Duty Transmission conveyor belt labeled LDT8 with description of 8-Ply 35 Oz. Tan Silver Hard Duck X FS 280 8 SBR FS FS 0.5 (1/2) More Info / Request Quote
Belt
PIW
Plys
Compound
Top Cover
Bottom Cover
Overall Thickness
More Information

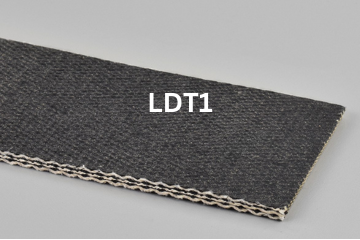

Light Duty Transmission conveyor belt labeled LDT1 with description of 3-Ply CP30 Black FS X FS

90

3

SBR

FS

FS

0.125 (1/8)

Light Duty Transmission conveyor belt labeled LDT2 with description of 3-Ply CP30 Tan FS X FS

90

3

SBR

FS

FS

0.141 (9/64)

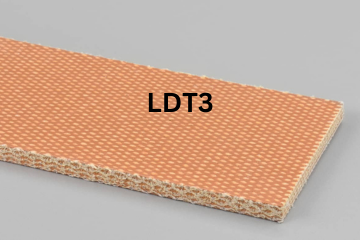

Light Duty Transmission conveyor belt labeled LDT3 with description of 4-Ply CP30 Tan FS X FS

120

4

SBR

FS

FS

0.1875 (3/16)

Light Duty Transmission conveyor belt labeled LDT5 with description of 4-Ply 35 Oz. Tan Silver Hard Duck X FS

140

4

SBR

FS

FS

0.2344 (15/64)

Light Duty Transmission conveyor belt labeled LDT4 with description of 5-Ply CP30 X FS

150

5

SBR

FS

FS

0.25 (1/4)

Light Duty Transmission conveyor belt labeled LDT6 with description of 5-Ply 35 Oz. Tan Silver Hard Duck X FS

175

5

SBR

FS

FS

0.3125 (5/16)

Light Duty Transmission conveyor belt labeled LDT7 with description of 6-Ply 35 Oz. Tan Silver Hard Duck X FS

210

6

SBR

FS

FS

0.375 (3/8)

Light Duty Transmission conveyor belt labeled LDT8 with description of 8-Ply 35 Oz. Tan Silver Hard Duck X FS

280

8

SBR

FS

FS

0.5 (1/2)

 Light Duty Conveyor Belting FAQ

  • What makes a belt "FDA approved," and when do I actually need it?

    FDA-approved belting is made from compounds — most commonly White Nitrile — that are certified safe for direct or indirect contact with food products under FDA regulations. Jealco's Light Duty Food Belting family is built specifically around this requirement, with PIW ratings from 35 up to 150 depending on ply count and cover thickness. You need FDA-rated belting anywhere the belt contacts food directly (bakery lines, packaged food conveying, produce handling) or where regulatory/customer audits require certified food-contact materials; for non-food industrial conveying, standard Nitrile or SBR belting is more cost-effective and performs just as well mechanically.

  • What's the difference between Nitrile, Neoprene, and Silicone covers for hot stock and water applications?

    All three show up in our Hot Stock & Water Belting family, but they're suited to different conditions. Nitrile offers solid general-purpose resistance to oils and moderate heat. Neoprene (Polychloroprene) adds better resistance to heat, weather, and chemicals, making it a step up for tougher hot-stock environments. Silicone is the high-performance option, built specifically for sticky, delicate, or hot products where other compounds would degrade or cause product to stick to the belt surface — it's the go-to when you're conveying something hot enough or tacky enough that standard rubber covers aren't a good fit.

  • What is Poly/Nylon (PN/EP) belting, and when should I choose it over a rubber-covered belt?

    Poly/Nylon (also called PN or EP) belting uses polyester fibers running lengthwise (warp) and nylon fibers running crosswise (weft), covered in rubber. This construction gives the belt strength in both directions with less stretch than single-direction fabric carcasses, which matters for tracking accuracy on package handling lines. It shows up in Jealco's Package Handling family alongside SBR, MOR, and Nitrile options — PN is generally the choice when you need a stable, low-stretch belt for consistent package positioning rather than raw abrasion or chemical resistance.

  • What's Solid Woven Cotton (SWC) belting, and why choose it over a rubber-covered belt?

    SWC is a non-rubberized belt made from multiple plies of cotton woven into a single cohesive unit rather than fabric plies bonded with rubber compound. It's often food-grade and is chosen when a lighter, more flexible, lower-cost belt is needed for light-duty transmission or conveying tasks that don't require the abrasion or chemical resistance a rubber cover provides. Jealco's Light Duty Solid Woven Cotton family runs from 45 to 110 PIW across 2 to 4 plies — noticeably lighter-duty than the rubber-covered families on this page.

  • What's the difference between Transmission belting and Package Handling belting?

    Transmission belting on this page (all SBR, 3 to 8 plies, PIW 90–280) is built to transmit power or move product across flat friction-surface (FS) covers on both sides — it's the belt itself doing mechanical work, not just carrying items. Package Handling belting, by contrast, is optimized for surface friction and low stretch to keep packages positioned correctly as they move — using compounds like SBR, MOR, Nitrile, and Poly/Nylon depending on the grip and tracking needs of the line. If your application is about accurately conveying and positioning items, look at Package Handling; if it's about driving mechanical motion, Transmission belting is the right family.
