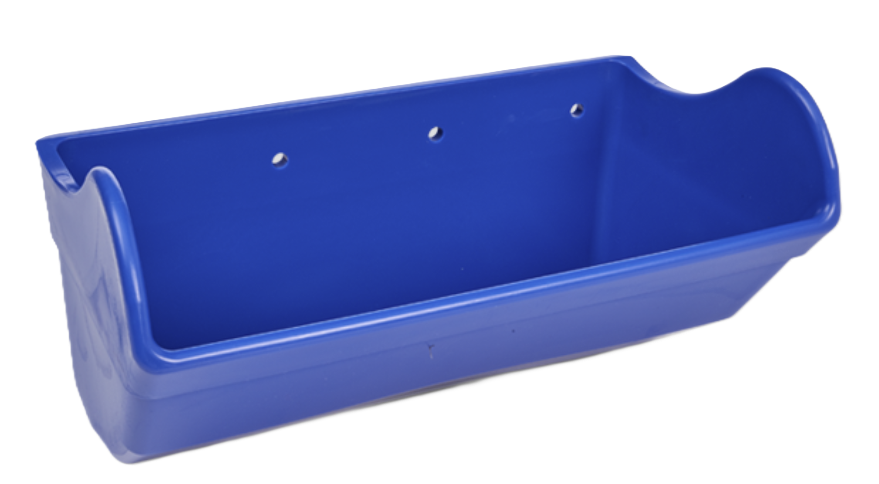

Tapco CC-LP HD Low-Profile Elevator Bucket Dimensions
The CC-LP HD is Tapco's molded low-profile follow-on to the CC-HD. It packs high capacity into a shallower front-to-back depth, so buckets can be spaced closer together for more throughput at the same belt speed. Tapco has moved many of its larger CC-HD sizes to this design.
Jealco International is an authorized Tapco distributor.
Shallow depth
Closer spacing for more buckets per foot of belt.
High capacity
Water-level capacity comparable to the standard CC-HD.
Blue or white
Every size in our store in blue and white polyethylene.
Also to order
Urethane and nylon in the same sizes, quoted to order.
Sizes, dimensions and capacity
Tap B for blue or W for white to open that exact size in our store.
Swipe the table sideways to see every column →
| Nominal size | Shop | Length (A) | Projection (B) | Depth (C) | WL capacity (cu in) | WL + 10% (cu in) | Min. spacing (in) | Weight (lb ea) | Drilling (holes × bolt) |
|---|---|---|---|---|---|---|---|---|---|
| 3 × 2 ** | B W | 3-1/4 | 2-1/2 | 1-3/4 | 6.2 | 6.5 | 2 | 0.14 | 2 × 1/4" |
| 4 × 3 ** | B W | 4-1/4 | 3-1/2 | 2-3/4 | 17.5 | 18.4 | 3 | — | 2 × 1/4" |
| 5 × 4 ** | B W | 5-1/4 | 4-1/2 | 2-3/4 | 37.2 | 39.1 | 3 | 0.51 | 2 × 1/4" |
| 6 × 4 ** | B W | 6-1/4 | 4-1/2 | 2-3/4 | 45.0 | 47.3 | 3 | 0.60 | 2 × 1/4" |
| 7 × 4 ** | B W | 7-1/4 | 4-1/2 | 2-3/4 | 51.7 | 54.3 | 3 | 0.67 | 3 × 1/4" |
| 6 × 5 | B W | 6-3/4 | 5-11/16 | 3-3/4 | 73.53 | 80.88 | 4 | 0.82 | 2 × 1/4" |
| 7 × 5 | B W | 7-3/4 | 5-11/16 | 3-3/4 | 85.69 | 94.26 | 4 | 0.91 | 3 × 1/4" |
| 8 × 5 | B W | 8-3/4 | 5-11/16 | 3-3/4 | 97.85 | 107.64 | 4 | 1.00 | 3 × 1/4" |
| 9 × 5 | B W | 9-3/4 | 5-11/16 | 3-3/4 | 110.0 | 121.0 | 4 | 1.08 | 3 × 1/4" |
| 10 × 5 | B W | 10-3/4 | 5-11/16 | 3-3/4 | 135.27 | 148.80 | 4 | 1.17 | 3 × 1/4" |
| 11 × 5 ** | B W | 11-5/16 | 5-1/2 | 3-3/4 | 132.2 | 138.8 | 4 | 1.63 | 4 × 1/4" |
| 12 × 5 ** | B W | 12-5/16 | 5-1/2 | 3-3/4 | 148.8 | 156.2 | 4 | 1.84 | 4 × 1/4" |
| 8 × 6 | B W | 8-11/16 | 6-11/16 | 4-3/4 | 137.97 | 151.77 | 5 | 1.42 | 3 × 1/4" |
| 9 × 6 | B W | 9-11/16 | 6-13/16 | 4-3/4 | 154.53 | 169.98 | 5 | 1.53 | 3 × 1/4" |
| 10 × 6 | B W | 10-11/16 | 6-11/16 | 4-3/4 | 172.75 | 190.03 | 5 | 1.65 | 3 × 1/4" |
| 11 × 6 | B W | 11-11/16 | 6-11/16 | 4-3/4 | 189.38 | 208.32 | 5 | 1.78 | 4 × 1/4" |
| 12 × 6 | B W | 12-11/16 | 6-11/16 | 4-3/4 | 222.63 | 244.89 | 5 | 1.86 | 4 × 1/4" |
| 13 × 6 | B W | 13-11/16 | 6-11/16 | 4-3/4 | 224.9 | 247.39 | 5 | 1.96 | 4 × 1/4" |
| 14 × 6 ▲ ** | B W | 13-7/8 | 6-5/8 | 4-3/4 | 206.2 | 216.5 | 5 | 2.45 | 5 × 1/4" |
| 10 × 7 | B W | 10-11/16 | 7-13/16 | 5-3/4 | 230.33 | 253.36 | 6 | 2.23 | 3 × 5/16" |
| 11 × 7 | B W | 11-11/16 | 7-13/16 | 5-3/4 | 253.83 | 279.21 | 6 | 2.38 | 4 × 5/16" |
| 12 × 7 | B W | 12-11/16 | 7-13/16 | 5-3/4 | 277.36 | 305.1 | 6 | 2.52 | 4 × 5/16" |
| 13 × 7 | B W | 13-11/16 | 7-13/16 | 5-3/4 | 300.86 | 330.95 | 6 | 2.67 | 4 × 5/16" |
| 14 × 7 | B W | 14-11/16 | 7-13/16 | 5-3/4 | 324.36 | 356.8 | 6 | 2.82 | 5 × 5/16" |
| 15 × 7 | B W | 15-11/16 | 7-13/16 | 5-3/4 | 347.83 | 382.61 | 6 | 2.97 | 5 × 5/16" |
| 16 × 7 | B W | 16-11/16 | 7-13/16 | 5-3/4 | 371.36 | 408.5 | 6 | 3.11 | 6 × 5/16" |
Replacing a CC-HD? If you run a CC-HD 8x6, 13x6 or 10x7 through 16x7, order the CC-LP in the same nominal size: it is Tapco's current build for that size. The CC-HD 18x7 and 20x7 are still made standard-depth; see the CC-HD chart.
Shop CC-LP low-profile buckets
WL = water level; use WL + 10% as usable capacity. For CC-LP HD low-profile buckets, Tapco recommends a minimum spacing of the nominal projection minus 1"; the Min. spacing column gives the figure for each size. Tolerances: capacity ±3%, dimensions A, B and C ±3/16". Figures per Tapco published data. Urethane and nylon are quoted to order.
** Modified (cut down) from a standard CC-HD bucket. That is why the 11 × 5 and 14 × 6 hold less than the next size down. ▲ The 14 × 6 was designed to fit Hunter Mfg. Grizzly elevators. Standard bolt holes are drilled on the WL (water level) line, ±1/4", and drilled 1/32" oversize.
Installing them
Tapco recommends fanged elevator bolts with nylon insert lock nuts on pulleys 6" and over, and No. 3 Eclipse slotted-head bolts on pulleys under 6", with a flat steel (fender) washer inside the bucket under each nut. Buckets can be intermixed with existing steel or plastic buckets; check clearances and balance first.
Other Tapco size charts
CC-HD chart
Tapco polyethylene sizes and capacities.
Super Capacity (8") chart
Tapco CCLP and U-HD, 10x8 to 20x8.
Maxi-Lift buckets
Quoted on each order.
FAQ
Why choose a low-profile bucket?
Because it is shallower, the buckets can be set closer together. More buckets per foot of belt means more throughput at the same belt speed, often without changing the head pulley or casing.
Which capacity figure should I use?
Use WL + 10%, water level plus 10%, as the usable capacity for engineering purposes.
Can I mix low-profile buckets with my existing buckets?
Yes, buckets can be intermixed, but projection varies between styles and makers. Check the elevator's clearances and balance, or send us your current bucket and we will match it.
I run a CC-HD. Which size do I order?
Order the same nominal size. Tapco now builds the CC-HD 8x6, 13x6 and 10x7 through 16x7 in this molded low-profile design, so the CC-LP in your size is the current equivalent for your leg. The CC-HD 18x7 and 20x7 are still made standard-depth.
Need a size or material not listed?
Send the size, material and quantity, or the bucket you are replacing, and we will quote it.
