Flexible Powered Roller Conveyors: FMH BestFlex
Powered rollers that move packages of any size at a controlled speed, expand to the trailer and store away after the shift. We supply FMH BestFlex 1.5 and 1.9, plus Hytrol and Ashland powered flexible conveyor, for docks worldwide.
0 to 120 ft/min
Variable speed, forward and reverse.
100 lb per foot
Rated capacity on both BestFlex series.
Curves to 180°
Serves several dock doors from one unit.
120 V power
Single-phase, plugs into a standard outlet.
Why powered instead of gravity?
No slope needed
Powered rollers move packages without relying on gravity or package weight.
Controlled speed
Adjustable from 0 to 120 ft/min (0 to 36.6 m/min).
Less strain
Operators stop pushing cartons, which helps in long trailers.
Accumulation
Optional photo-eye zones on the BestFlex 1.9 hold packages without them pressing together.
Flexible layout
Expands, curves up to 180° and collapses for storage.
Links up
Runs alone or ties into your fixed conveyor.
BestFlex 1.5 vs. BestFlex 1.9
Both carry 100 lb per foot at 0 to 120 ft/min on 120 V single-phase power.
| BestFlex 1.5 | BestFlex 1.9 | |
|---|---|---|
| Rollers | 1.5 in (1.9 in optional) | 1.9 in, 16 ga, on 12 mm axles |
| Capacity | 100 lb per foot | 100 lb per foot |
| Casters | 8 x 2 in standard; 6 x 2 in optional | 8 x 2 in |
| Widths | 30 in standard | 18, 24, 30 and 36 in |
| Motors | Fractional DC with serviceable brushes | Fractional DC with serviceable brushes; quick-change drive belts |
| Accumulation | Transport | Optional read-between-the-rollers photo eyes for zero-pressure accumulation |
| Best for | General shipping and receiving, fulfillment | High-volume docks, 3PL and truck loading |
Specifications per FMH Conveyors.

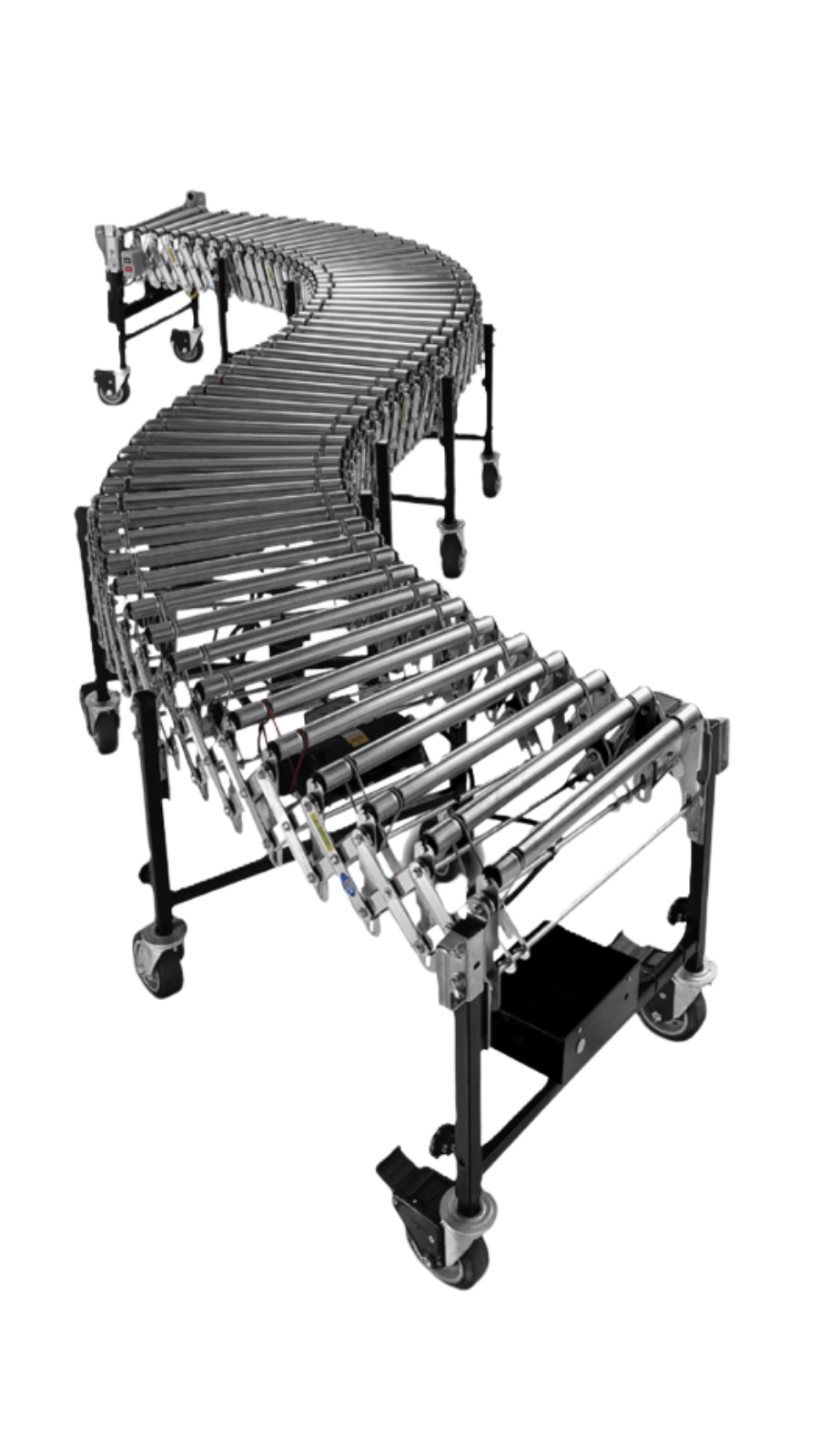

BestFlex 1.5
- Rollers 1.5 in
- Width 30 in standard
Compact rollers for a smaller retracted footprint, for general shipping and receiving.

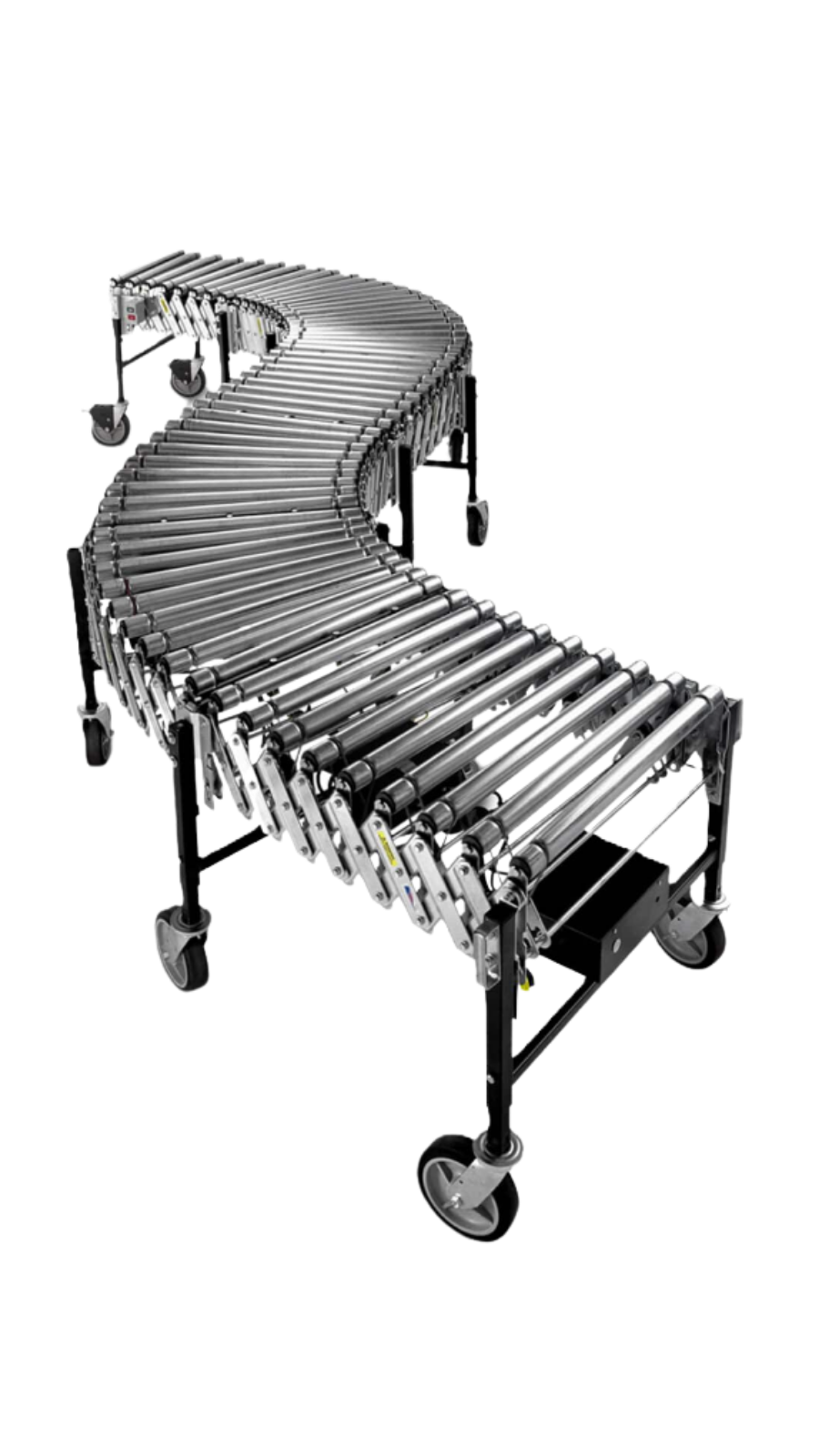

BestFlex 1.9
- Rollers 1.9 in, 16 ga
- Widths 18 to 36 in
Heavier construction, quick-change drive belts and optional zero-pressure accumulation.
BestFlex accessories
PowerTrax power assist
Moves the conveyor in and out of trailers without pushing it by hand.
Impact cart
Takes the impact of heavy loading and unloading to protect the conveyor.
Auxiliary power cord
Links two conveyor sections so they run together.
FMH Conveyors was formed in 2015 when Flexible Material Handling (NestaFlex) and Best Conveyors (BestFlex) came together. It is based in Jonesboro, Arkansas and is part of Duravant.
What to send us
Packages
Size, weight and packages per hour at peak.
Length
Closed and extended length, and the trailer length you load.
Width and height
Conveyor width and working height at each end.
Accumulation
Whether packages must stop and queue without touching.
Power
Voltage and frequency at the dock. BestFlex runs on 120 V single-phase; tell us if your site is 220-240 V or 50 Hz.
Existing conveyor
Anything it must connect to.
No power at the dock, or a lighter budget? See flexible gravity conveyors. As an independent distributor we also source Hytrol and Ashland powered flexible conveyor.
Flexible powered conveyor FAQ
What is the difference between BestFlex 1.5 and 1.9?
Both carry 100 lb per foot at 0 to 120 ft/min. The 1.5 uses 1.5 inch rollers for a more compact unit and comes 30 inches wide as standard. The 1.9 uses heavier 1.9 inch 16 gauge rollers, comes in 18, 24, 30 and 36 inch widths, has quick-change drive belts and offers optional photo-eye zero-pressure accumulation.
How fast does a flexible powered conveyor run?
BestFlex runs at an adjustable 0 to 120 feet per minute (0 to 36.6 m/min), forward and reverse.
What power does BestFlex need?
120 volt single-phase AC. If your site runs 220 to 240 volts or 50 Hz, tell us when you ask for a quote so we can confirm the right electrical setup for your country.
What is zero-pressure accumulation?
Photo eyes between the rollers detect packages and stop each zone so packages queue without pushing against each other. It is optional on the BestFlex 1.9.
Should I choose powered or gravity flexible conveyor?
Gravity conveyor is lower in cost and needs no power, but depends on slope and package weight and operators often push cartons along. Powered conveyor moves any package at a set speed, which pays off in high-volume docks and long trailers.
Which flexible powered conveyor brands does Jealco source?
FMH BestFlex, plus Hytrol and Ashland powered flexible conveyor. As an independent distributor we can source others on request.
Tell us the dock, the packages and the rate
Package size and weight, packages per hour, the length you need and the power at your dock. We will recommend the BestFlex model and quote it with freight.
