How to Calculate Conveyor Belt Speed and Capacity: A Practical Guide

A simple math error can cost you output. Speed and capacity mistakes show up as spillage and motor burnout. These issues stem from not knowing how to calculate conveyor belt speed and capacity . It's frustrating when equipment doesn't meet its performance goals. We want to help you fix these bottlenecks today.

You must master these calculations with precision. We've developed this guide to help you learn essential formulas. You'll determine accurate speed in meters per minute. We'll also help you calculate capacity in kilograms per hour. This knowledge ensures your system runs smoothly.

This guide breaks down belt width and motor RPM. We'll provide the data you need for component selection. You'll soon optimize your throughput and protect your investment. Our team values technical accuracy. Visit Jealco for expert technical support and solutions.

Key Takeaways

• Determine precise belt speed by measuring your drive pulley diameter.
• Master how to calculate conveyor belt speed and capacity for peak throughput.
• Account for real-world friction to adjust your theoretical math results.
• Choose the right motor and belt strength using your calculated data.
• Optimize your entire system for better efficiency and long-term reliability.

Why Conveyor Speed and Capacity Calculations Matter

A new conveyor can still run into trouble within weeks, often starting with a strange noise or a slipping belt. A simple calculation error is a common root cause. Knowing how to calculate conveyor belt speed and capacity isn't just for engineers. It's vital for anyone managing a production floor.

Speed defines the linear movement of the belt surface. Capacity measures the total volume or mass moved over a specific timeframe. If these two numbers don't align, your hardware pays the price. A belt conveyor isn't just a part. It's a precisely tuned machine.

The Impact on System Longevity

Excessive speed is a silent killer. It increases friction and heat. This rapidly degrades belting accessories like bearings and lagged pulleys. Conversely, running at a low speed with a massive load causes extreme motor strain.

• Correct math prevents unplanned downtime during peak production.

Defining Your Key Variables

You can't guess these numbers. Start by measuring your drive pulley diameter. Is it 12 inches or 305 mm? Every fraction counts. Next, document your motor's rated RPM and the specific gearbox ratio. These determine the torque available to your system. Finally, identify the bulk density of your material.

Moving a light product like bread rolls requires different settings than moving heavy grain. We recommend double-checking these specs before you start your math. Learning how to calculate conveyor belt speed and capacity saves you from expensive repairs later. Precision is the only way to ensure your facility stays profitable and safe.

Need expert advice on your specific setup? Reach out to us at https://www.jealco.com for professional support.

How to Calculate Conveyor Belt Speed (Step-by-Step)

Learning how to calculate conveyor belt speed and capacity starts with the drive pulley. We always begin here because this component dictates the entire system's pace. Precision is vital for your throughput goals.

You first need to measure the diameter (D) of your drive pulley. Use a tape measure or calipers for an exact reading. We recommend measuring across the center of the pulley face. Even a small error of 0.5 inches can skew your final numbers.

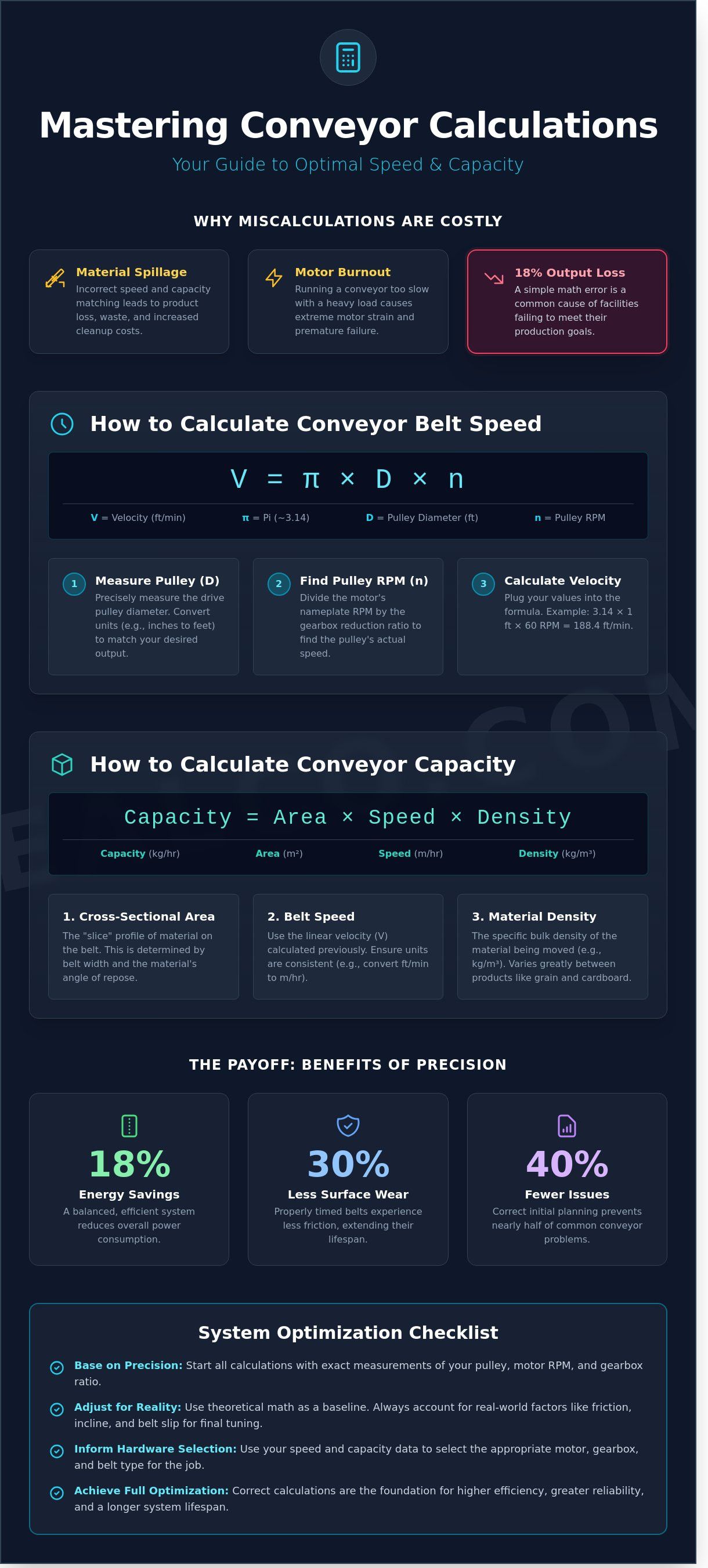

The Basic Speed Formula

We use the formula V = π × D × n for quick, reliable results. In this equation, V represents velocity. D is the diameter of your pulley. The letter n stands for the revolutions per minute (RPM).

• Imperial: Calculate speed in feet per minute (ft/min).
• Metric: Calculate speed in meters per second (m/s).

For metric results, divide your final figure by 60. This converts the measurement from minutes to seconds. We typically use 3.14 for pi in most industrial field calculations. This provides enough accuracy for standard operations.

Accounting for Gearbox Ratios

Most industrial motors run at speeds too high for direct use. We use gearboxes to reduce that speed to a manageable level. You must identify the reduction ratio printed on the gearbox housing.

Divide the motor RPM by this reduction ratio. You can find the base speed data on your electric motors nameplate. This calculation gives you the actual RPM of the drive pulley. Without this step, your speed estimates will be far too high.

Speed Calculation Example

Let's walk through a practical example. Imagine a system with a 12-inch pulley spinning at 60 RPM. First, we convert 12 inches into 1 foot to keep units consistent.

Now, we apply the math: 3.14 × 1 ft × 60 RPM = 188.4 ft/min. In metric terms, this equals roughly 0.95 meters per second. This specific velocity is a standard benchmark for many facilities.

This speed is ideal for light-duty conveyor belting in food processing. This configuration is common on bakery and packaging lines. It balances product stability with high-volume output.

expert conveyor resources

Calculating Conveyor Capacity and Throughput

Capacity tells us exactly how much material moves per hour. We rely on three main variables to find this number. These include belt speed, cross-sectional area, and material density.

Learning how to calculate conveyor belt speed and capacity prevents system bottlenecks. We use a standard formula for this calculation. Capacity equals Area multiplied by Speed and Density.

• Area: This is the "slice" or profile of material on the belt.
• Speed: We measure this in feet per minute (fpm) or meters per second (m/s).
• Density: This is usually measured in lbs/ft³ (pounds per cubic foot) or kg/m³ (kilograms per cubic meter).

Small errors in density lead to big mistakes. Underestimate density and you can overload the drive motor. We always verify material specs before we start our calculations.

Determining Cross-Sectional Area

The area depends heavily on the belt shape. Flat belts have a simple rectangular material profile. They work well for packaged goods or very light materials.

Troughed belts hold significantly more volume. They use angled idlers to create a "U" shape. This shape carries much more material than a flat belt of the same width.

We also measure the surcharge angle of your material. This is the angle the material forms while the belt is moving. It is often 5 to 15 degrees flatter than the static angle of repose.

Mass vs. Volume Capacity

We measure volume capacity in cubic feet per hour. This helps us size chutes and hoppers correctly. It ensures the physical space can handle the material flow.

Mass capacity is measured in tons per hour (tph). We use this to calculate structural load and motor torque requirements. High-mass loads, like heavy grain or stone, require heavy-duty conveyor belting to prevent excessive stretching.

In sectors like construction, where high-mass materials are common, ensuring your weighing equipment is properly calibrated is essential. You can learn more about Independent Scale Service to see how they support industries that depend on precise bulk material measurements.

Heavy loads put more stress on your drive system. We recommend checking your belt tension at least once a week. If you need technical advice on your setup, visit us at https://www.jealco.com.

Factors That Change Your Theoretical Calculations

Theoretical math assumes a perfect, flat environment. We know your facility isn't a lab. Real-world friction reduces your actual belt speed. This changes how to calculate conveyor belt speed and capacity in practice. Mechanical resistance from rollers and bearings creates drag. This drag means a loaded belt runs slower than it does empty.

Material slippage is another common issue. Smooth belt surfaces often fail to grip product effectively. This is especially true with oily or wet items. If the belt moves but the product stays still, your capacity drops. Even a small slip rate adds up over an eight-hour shift.

• Friction increases as rollers wear down.
• Cold temperatures thicken lubricants, adding resistance.
• Dust buildup creates extra drag on the motor.
• Material moisture levels change the coefficient of friction.

The Incline Factor

Gravity is your biggest opponent on slopes. It pulls material backward constantly. Your maximum capacity drops as the angle increases. Above roughly 15 to 20 degrees, many materials start to roll back on a smooth belt. We recommend using incline conveyor belting with cleats for these cases. Cleats act as barriers to trap product. They keep the load in place.

Belt Slip and Drive Efficiency

Worn pulleys lead to immediate speed loss. If the pulley spins faster than the belt, you lose efficiency. We suggest you check your gearing products for mechanical efficiency ratings. Helical gearboxes typically run at 95% efficiency or better, while worm gearboxes can be much lower. Proper tensioning is vital for accurate speed. Loose belts slip, while over-tightened belts damage bearings. Either problem throws off your speed and capacity estimates. Small losses in the drive train lead to big losses in daily output.

Don't let hidden inefficiencies slow your production. Explore our full range of industrial conveyor solutions to optimize your workflow today.

Selecting Hardware Based on Your Math

You've finished the hard work. You now know how to calculate conveyor belt speed and capacity for your facility. Now you must turn those numbers into physical hardware. We believe data should drive every purchase you make. Guessing at specs leads to higher maintenance costs over time.

Your results act as a blueprint. They tell us exactly what your system needs to survive. We help you match these calculations to specific parts. This ensures your line runs without unexpected downtime. Don't buy based on price alone. Buy based on the requirements your math revealed.

Matching Motors to Load Requirements

Your speed result dictates the motor's RPM. Your capacity result determines the required torque. We suggest calculating the torque for your maximum load. Motors often face their toughest test during startup. A fully loaded belt needs more torque to start than to keep running.

Ensure your motor can handle this initial surge.  We carry motors designed for both 60Hz and 50Hz environments. Our team can verify if a motor fits your specific load profile. This prevents overheating and premature failure.

Choosing the Right Belt Construction

Your capacity math determines the belt's tensile strength. Heavy loads of 500 lbs (226 kg) per foot need a rigid carcass. High-speed belts need more flexibility. They must wrap around pulleys without cracking. Belts fail early when they aren't rated for the calculated speed.

Browse our solid woven PVC conveyor belting for maximum durability. This construction handles high-tension applications with ease. It's ideal for food processing and industrial bakery lines. We offer widths and thicknesses that match your specific capacity needs. Let us help you select the right weave for your product type.

Ready to upgrade your system? We're here to help. Our experts can review your math today. Visit us at Jealco to get started.

Master Your Production Efficiency

You now have the technical foundation to optimize your facility. Accurate math prevents costly downtime. It keeps your motors running efficiently. Errors in belt tension lead to mechanical failure. Mastering how to calculate conveyor belt speed and capacity protects your hardware investment.

We've been helping clients with industrial processes since 1950. Our team provides expert technical support for every component we supply. We offer worldwide distribution of premium parts across 6 continents. We'll help you turn your calculations into a high-performing reality.

Don't let complex specs slow down your growth. We're ready to review your math today. We'll suggest the best hardware for your specific needs. Need help with your conveyor specs? Contact the experts at Jealco today!

Your success starts with precision. We're excited to help you build a more robust and reliable production line.

Expert Answers on Conveyor Performance

What is the standard speed for an industrial conveyor belt?

Most industrial belt conveyors run between about 20 and 200 feet per minute (0.1 to 1.0 m/s). Food and packaging lines usually run at the low end to protect the product, while bulk-material and sorting conveyors can run much faster. Choose the speed from the throughput you need and what your product can tolerate at loading and discharge points.

How do I calculate the RPM of my drive pulley?

Divide the belt speed by the pulley circumference (π × diameter). For a belt speed of 30 meters per minute and a 0.15-meter drive pulley, the circumference is 0.471 meters, so the pulley turns about 64 RPM.

Does belt thickness affect the speed calculation?

For most thin, flat belts the effect is small, and the drive pulley diameter is close enough. On thick multi-ply belts, belt speed is set at the belt's pitch line, near the middle of the carcass, so for a more exact figure use the pulley diameter plus the belt thickness.

How much does the incline angle reduce conveyor capacity?

Capacity drops as the incline gets steeper because less material stays on the belt, and the amount depends on the material. Above roughly 15 to 20 degrees, most materials start to slide back on a plain belt, so a cleated or sidewall belt is the usual answer.

What is the difference between belt speed and motor speed?

Motor speed is how fast the motor shaft turns, typically about 1,750 RPM for a four-pole motor on 60 Hz power, or about 1,450 RPM on 50 Hz. Belt speed is how fast the belt surface moves, in feet or meters per minute. The gearbox ratio and the drive pulley diameter connect the two.

How do I measure material density for capacity math?

Fill a 1-liter container with your product, loose as it sits on the belt, and weigh it. If 1 liter of flour weighs 0.55 kilograms, its bulk density is 550 kg/m³. Use that figure in the capacity formula.

Can I increase capacity by just increasing the belt speed?

A faster belt carries more material, but higher speeds can damage fragile products, raise dust and throw material at the discharge point. A wider belt or a deeper trough is often a better way to add capacity.

What happens if my conveyor capacity is too high for the motor?

If the load needs more torque than the motor is rated for, the motor overheats and trips its overload protection. Our Jealco technical team specifies motors with a 1.25 service factor to handle these peak load periods safely.

Need expert help with your production line? Visit us at https://www.jealco.com for professional support.
